Xtreme-Series Under Axle Anti Roll Bar Kit (fits 79-04 Mustang) UPR

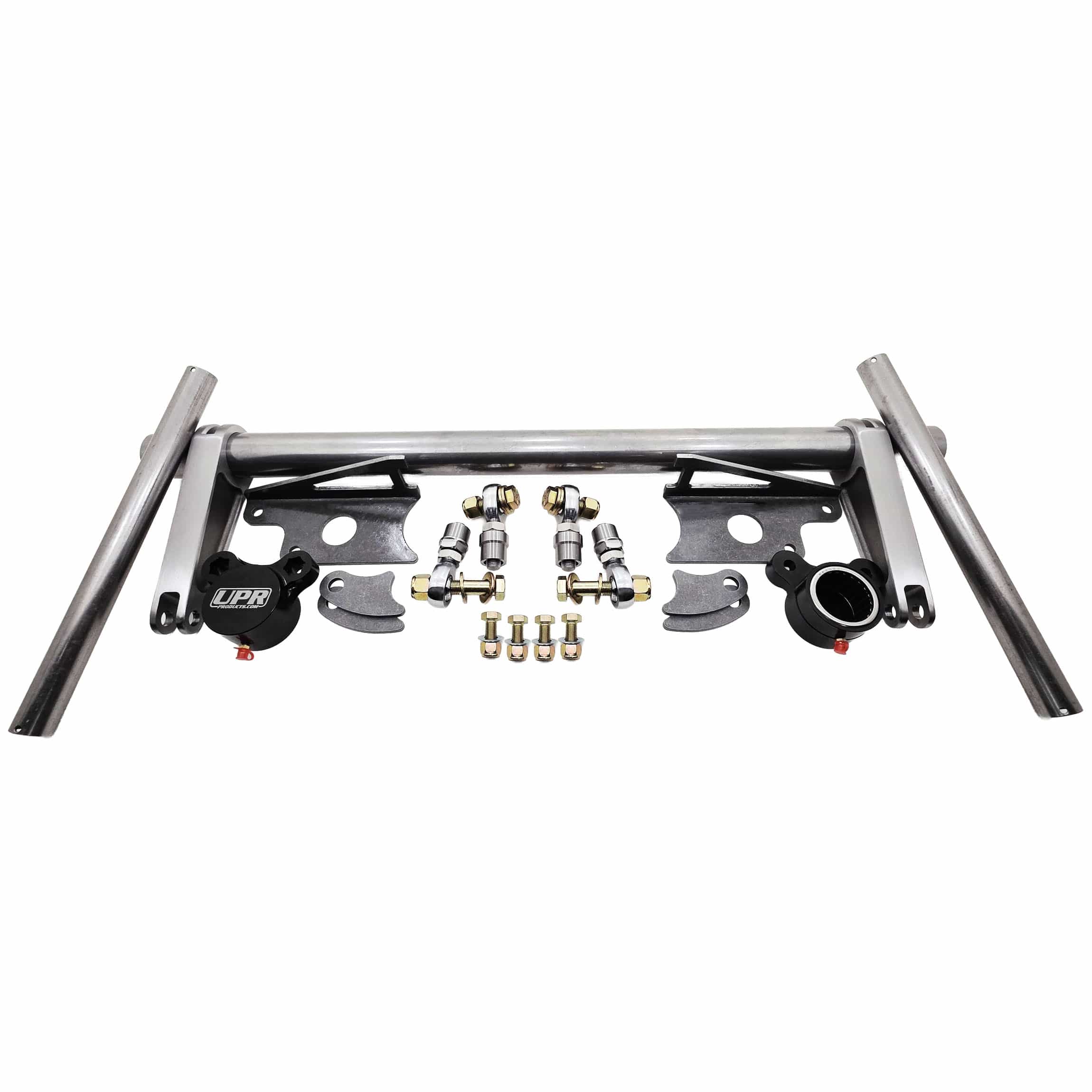

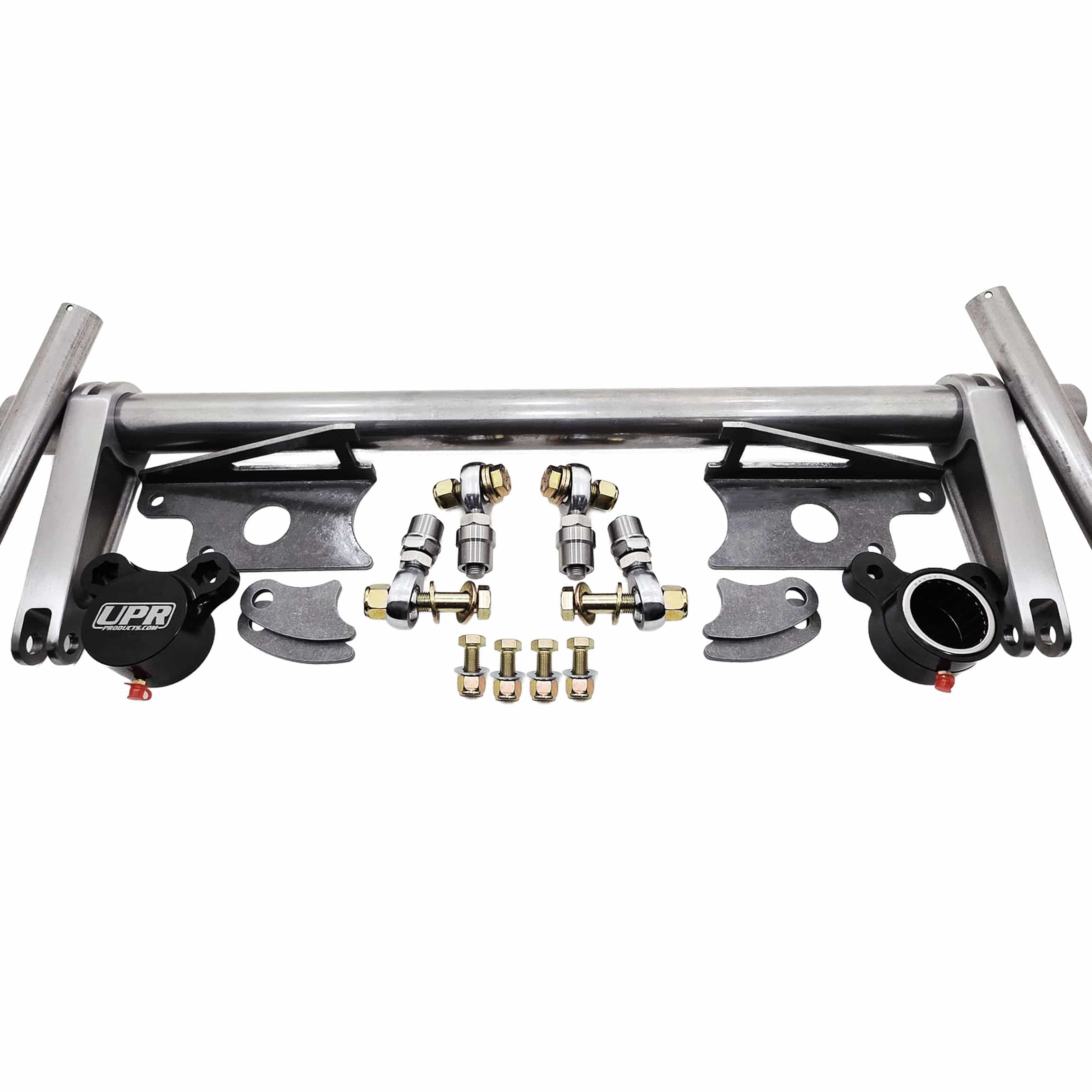

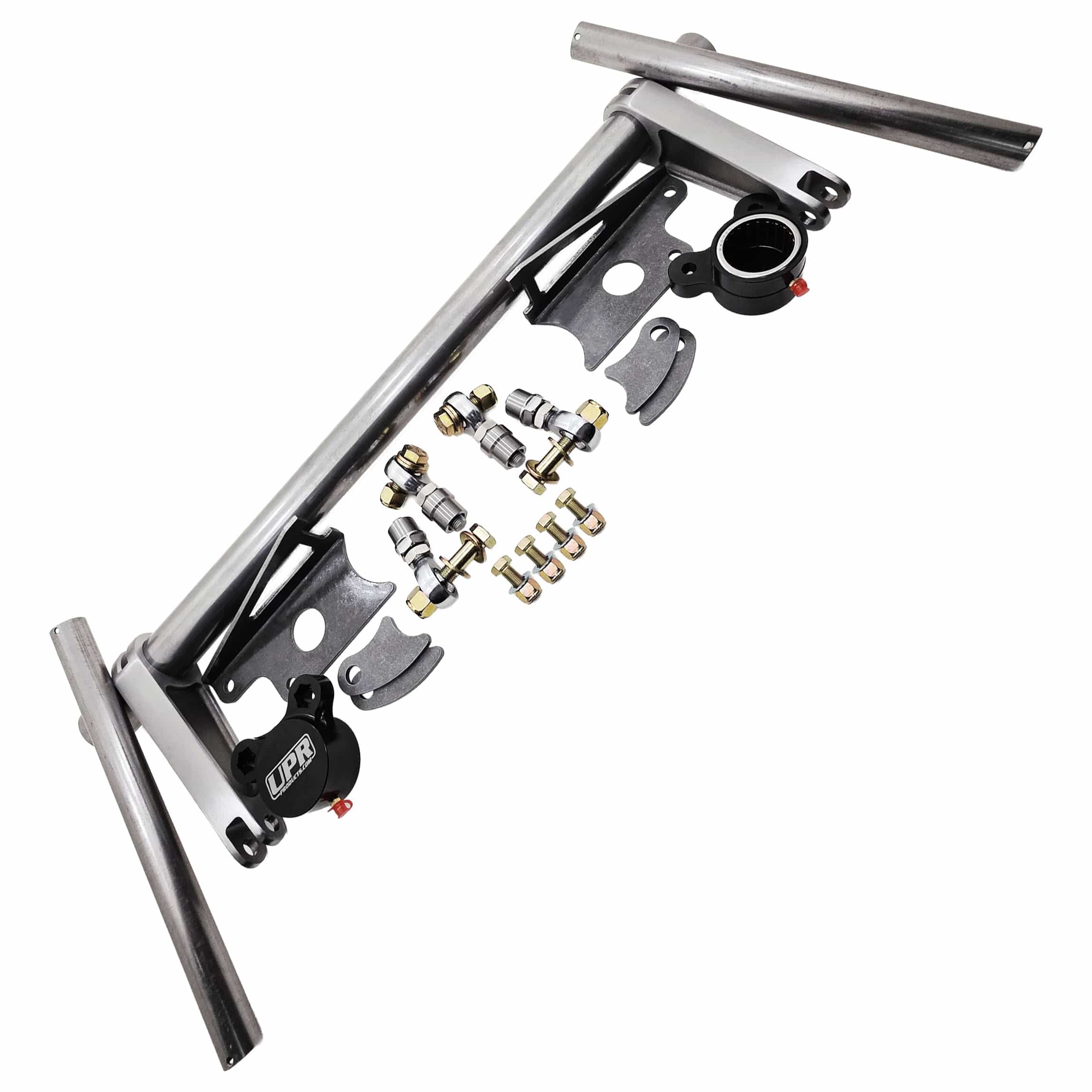

     The UPR Xtreme-Series Anti-Roll Bar Kit for under the Axle is a great options for serious racer in eliminating body roll and stabilizing the car down the track. Our Anti Roll Bar features CNC Billet Aluminum bearing caps with needle roller bearings, 3/16" thick mounting tabs, forged steel arms 6" center to center, 28" of 1-5/8" Tubing allowing up to 24" center to center on the arms and 12" of 1" tubing for the link bars. Bar and link assemblies comes unwelded to allow it to be tailored to your specific set up. This style bar is great for maximum exhaust clearance or in cars that are lowered and have minimal clearance between the axle housing and floor of the car. This is the same bar used in our Ultra Street car that has gone 1.06 60 foot.

Anti-roll bar is designed for drag race use only. Links must be disconnected while driving on street to prevent damage.

» Welding Required

» 6" Forged Steel Arms center to center

» 28" of 1-5/8" 4130 Chrome-Moly Tubing

» Designed to be installed under the Axle

» Eliminates Body Roll & Stabilizes the car

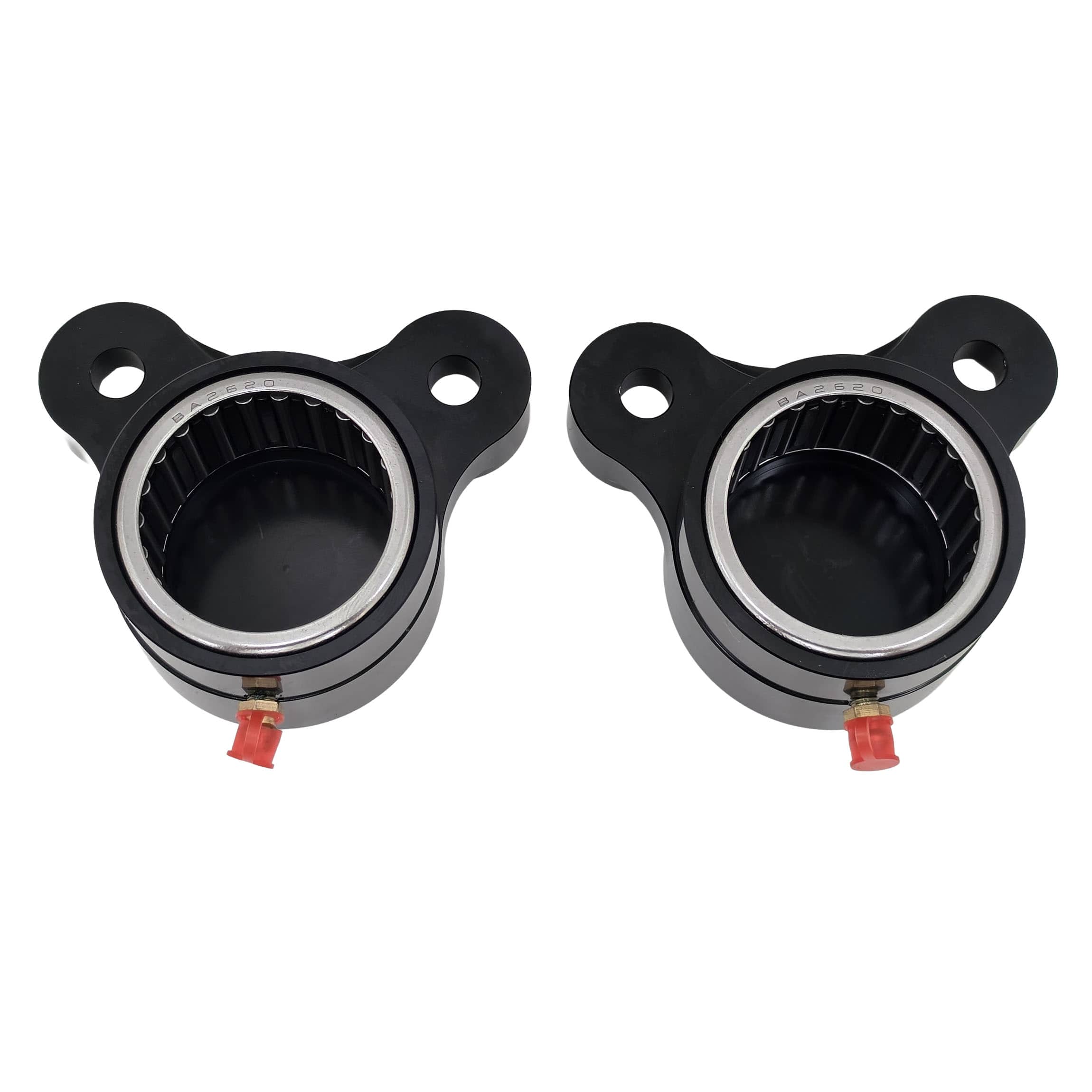

» CNC Billet 6061 Bearing Caps with Roller Bearings

» Tabs can be welded to the front frame rail or Xtreme Upper Torque Box hoop
» Ideal for Maximum exhaust clearance or Lowered builds with minimal axle to floor clearance.



1979 1980 1981 1982 1983 1984 1985 1986 1987 1988 1989 1990 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000 2001 2002 2003 2004 LX GT GTS Mustang Mach 1 Bullitt Cobra* Shelby Roush Saleen & Vehicles.



* Does not work on cars with IRS.
