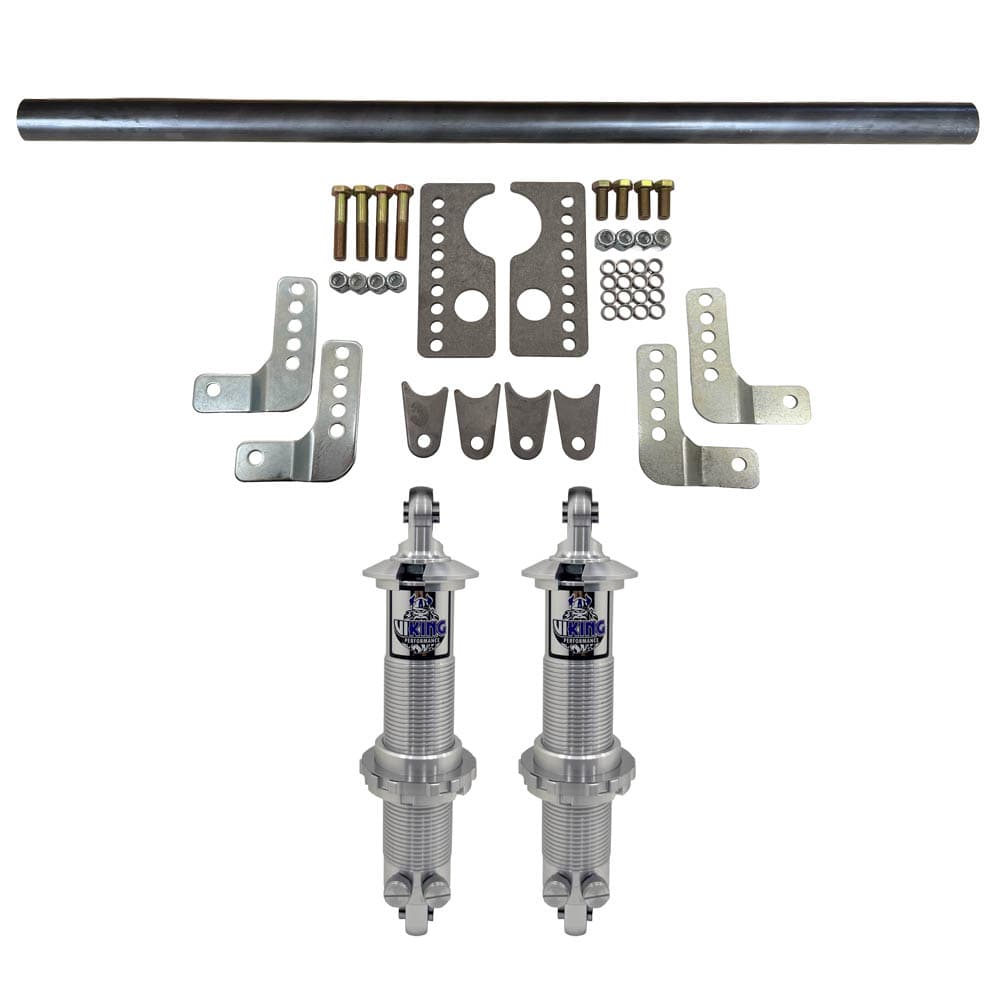

UPR Universal Rear Coil Over Shock Mounting Kit Double Adj C209 (Street / Strip) 3" Diameter

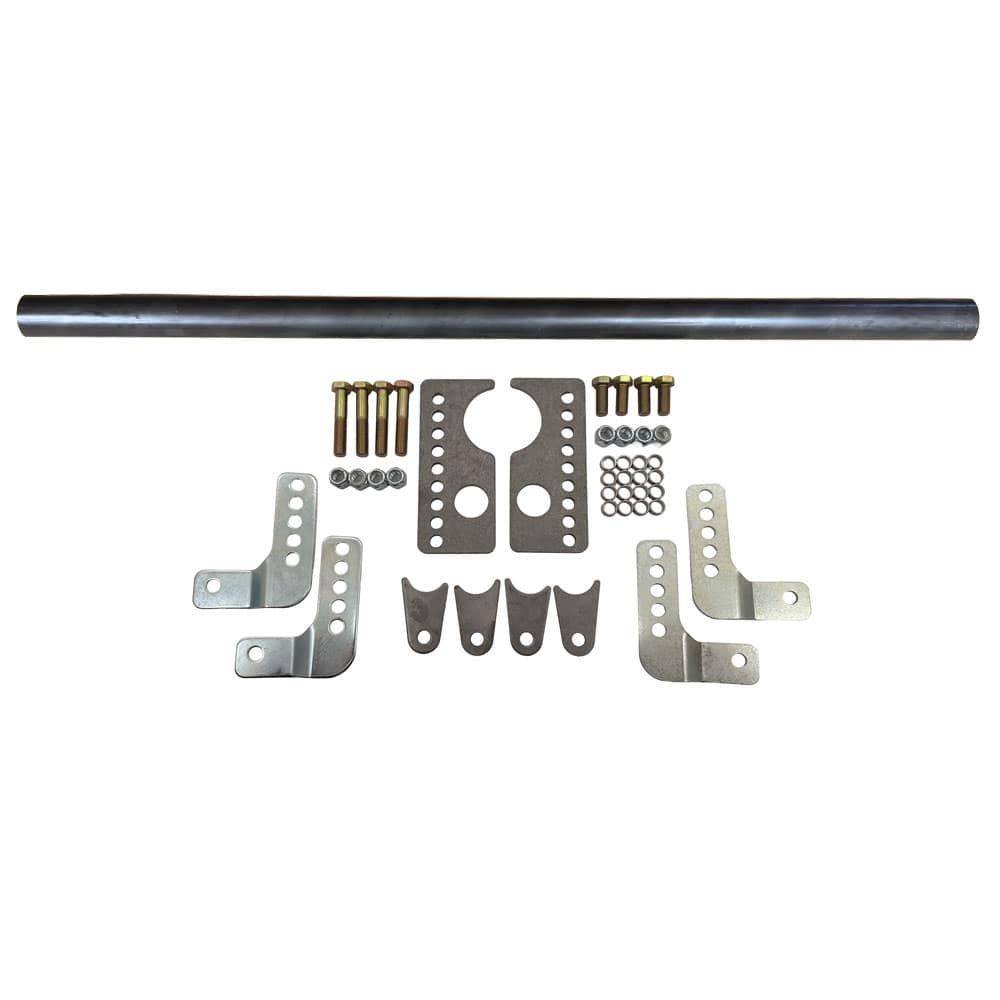

     This complete Rear Coil Over Double Adjustable Shock Kit is great for the racer needing a custom set up. Designed for use with coil over shocks on a 3" diameter rear axle like most fabricated 9" and some factory 9" Rears, GM 10 and 12 bolt Rear Axles. Light weight 36" long 1 5/8 diameter chrome moly mounting tube and larger 1/2" grade 8 shock mount bracket hardware over the standard 3/8" that other kits use. Axle mounting brackets are laser cut for a 3" diameter axle.



Built around the Viking Performance C209 Double Adjustable Coil Over Shock which has an 11.57" compressed height and 16.76 extended height. These shocks have 19 positions of compression and 19 positions of rebound adjustment for 361 different valving combinations.



» Grade 8 Hardware Included
» Zinc Plated lower shock mounts

» 36" Long 1 5/8" Chrome Moly Tube

» Fits 3" Diameter Axle Tubes
» Viking C209 Double Adjustable Shocks
» Larger 1/2" Grade 8 Shock Bracket Hardware
» Viking Coil Over Springs available (See Optional Parts)
» Allows for Maximum Tire Clearance by moving Shocks in



Universal

Some Factory 9" and most Fabricated 9", GM 8.5 10 Bolt (full size truck and car, not S10), GM 12 Bolt

Made in the USA!
