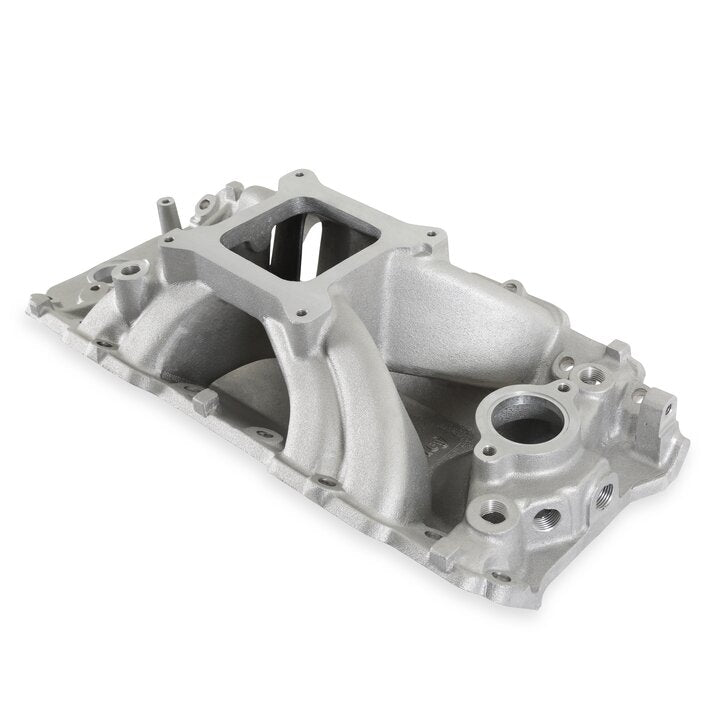

Strip Dominator Intake Big Block Chevy V8 Carburetor Intake Manifold 396ci-502ci Rectangular Port Heads Holley

Carburetor Intake Manifold 396ci-502ci with Rectangular Port Heads

Features and Benefits:

• Power band: 4500-8500 RPM Deep Plenum Design with Isolated Runners 4150 Square Bore Carburetor Mounting Flange Height: Front 4.77 inch, Rear 6.16 inch Single Plane/Open Plenum Design Port Size: 2.30 inch height 1.60 inch width

Associated Comments:

• Will fit tall blocks with use of Weiand spacer plate kit, P/N 8204. Accepts 850-1000 CFM Holley HP 4bbl carburetor.

Details:

• Basic Operating RPM Range: 4500-8500 RPM
• Cnc Ported: No
• Carburetor Flange: Square/4150
• Carburetor Quantity: 1.0
• Carburetor Studs Included: No
• Color: Natural
• Construction: Cast
• Cylinder Head Port Shape: Rectangle
• Deck Height: 9.8 Inch
• Egr Port: No
• Engine: Chevrolet Big Block - Rectangle Port
• Flange Style: 4150 Square Bore
• Front Maximum Height: 4.77 Inch
• Fuel Injectors Included: No
• Fuel Rail(s) Included: No
• Fuel System Type: Carb
• Gasket Or Seal Included: No
• Grade Type: Performance
• Intake Port Gasket(s) Included: No
• Manifold Type: High Rise
• Material: Aluminum
• Nitrous Bung(s) Included: No
• Plenum Finish: Natural
• Rear Maximum Height: 6.16 Inch
• Removable Runners: No
• Removable Top/Lid: No
• Single Or Dual Plane Type: Single Plane
• Throttle Body Bore Diameter: 3.6
• Throttle Body Gasket Included: No
• Throttle Body Included: No
• Vacuum Ports: No
• Warranty: Manufacturer's Limited 90 Day Warranty
