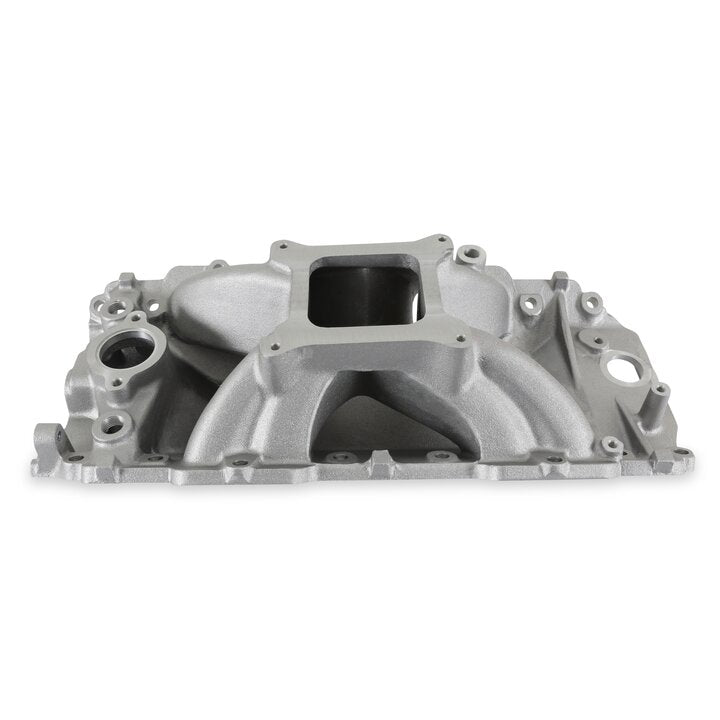

Strip Dominator Intake Big Block Chevy V8 Carburetor Intake Manifold 396ci-502ci Oval Port Heads Holley

Carburetor Intake Manifold 396ci-502ci with Oval Port Heads

Features and Benefits:

• Height: Front 4.75 inch, Rear 6.25 inch Single Plane/Open Plenum Design Deep Plenum Design with Isolated Runners Port Size: 1.85 inch height 1.60 inch width 4150 Square Bore Carburetor Mounting Flange Power band: 4500-8500 RPM

Associated Comments:

• Will fit tall blocks with use of Weiand spacer plate kit, P/N 8204. Accepts 850-1000 CFM Holley HP 4bbl carburetor.

Details:

• Basic Operating RPM Range: 4500-8500 RPM
• Cnc Ported: No
• Carburetor Flange: 4150 Square Bore
• Carburetor Quantity: 1.0
• Carburetor Studs Included: No
• Color: Natural
• Construction: Cast
• Cylinder Head Port Shape: Oval
• Deck Height: 9.8 Inch
• Egr Port: No
• Engine: Chevy Big Block - Oval Port
• Flange Style: 4150 Square Bore
• Front Maximum Height: 4.77 Inch
• Fuel Injectors Included: No
• Fuel Rail(s) Included: No
• Fuel System Type: Carb
• Gasket Or Seal Included: No
• Grade Type: Performance
• Intake Port Gasket(s) Included: No
• Manifold Type: High Rise
• Material: Aluminum
• Nitrous Bung(s) Included: No
• Plenum Finish: Natural
• Rear Maximum Height: 6.16 Inch
• Removable Runners: No
• Removable Top/Lid: No
• Single Or Dual Plane Type: Single Plane
• Throttle Body Bore Diameter: 3.6
• Throttle Body Gasket Included: No
• Throttle Body Included: No
• Vacuum Ports: No
• Warranty: Manufacturer's Limited 90 Day Warranty
