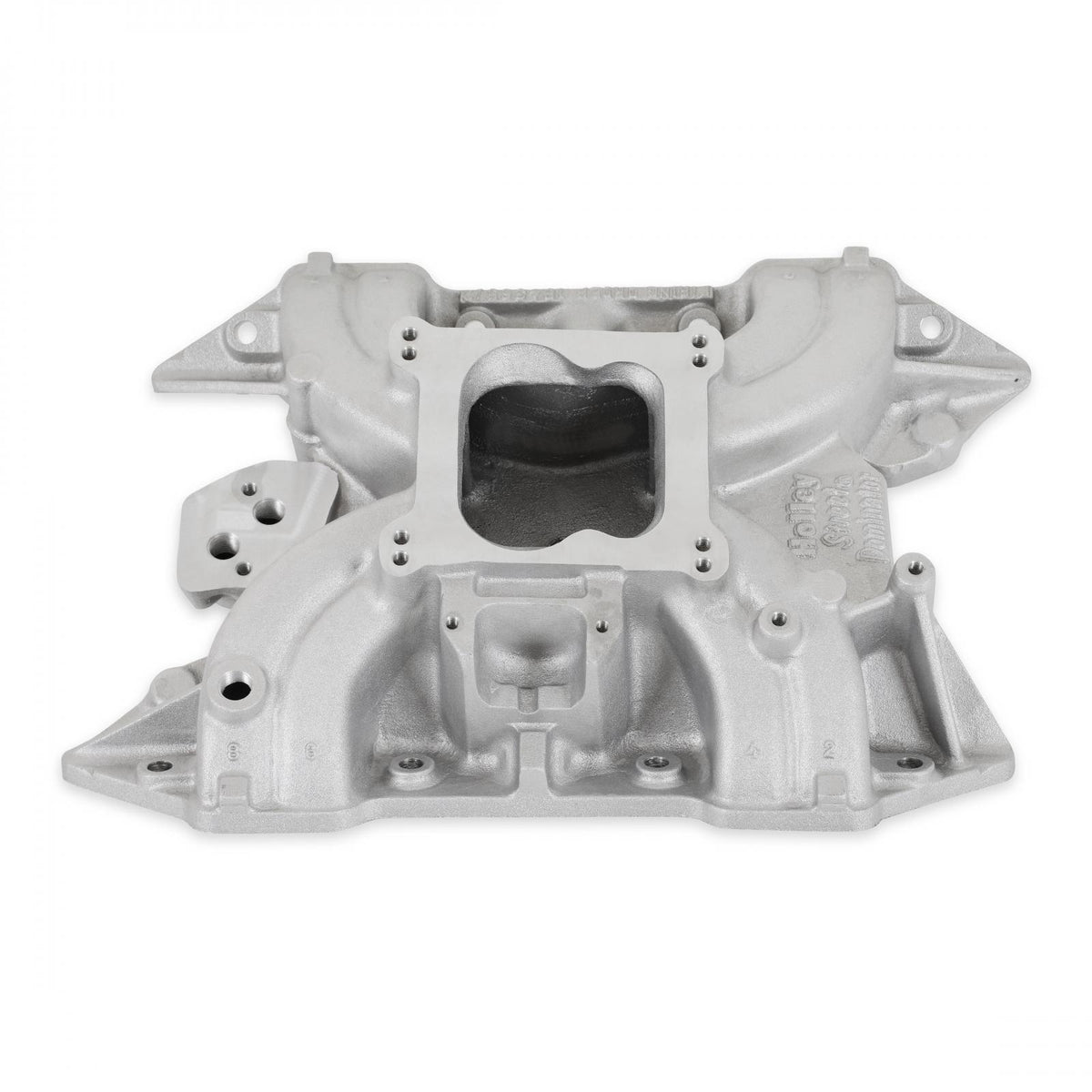

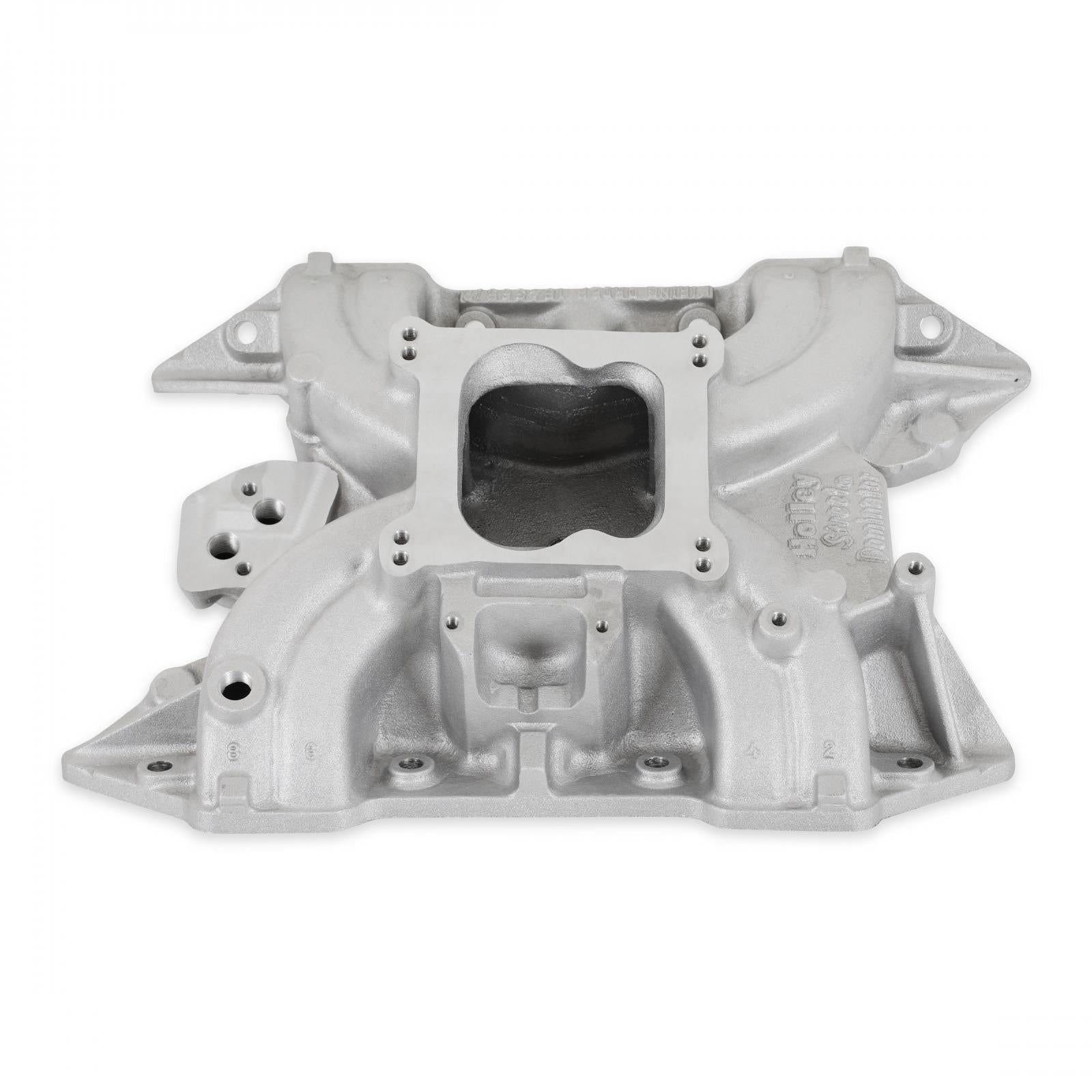

Street Dominator Intake Chrysler Big Block V8 Fits 413, 426 Wedge, and 440 Cubic Inch V8 Engines Holley

Intake Manifold 413, 426 Wedge, 440 V8

Features and Benefits:

• Power band: 1500-6500 RPM Height: Front 4.13 inch, Rear 5.25 inch Port Size: 2.14 inch height 1.12 inch width Isolated Plenum Universal Carburetor Mounting Flange Single Plane Design

Associated Comments:

• Spreadbore carburetors might require the use of a carburetor spacer. Check for Throttle plate clearance when installing this intake manifold.

Details:

• Basic Operating RPM Range: 1500-6500 RPM
• Cnc Ported: No
• Carburetor Flange: Square/4150
• Carburetor Quantity: 1.0
• Carburetor Studs Included: No
• Color: Natural
• Construction: Cast
• Cylinder Head Port Shape: Rectangle
• Deck Height: 10.725 Inch
• Egr Port: No
• Engine: Chrysler Big Block V8
• Flange Style: 4150 Square Bore | Dual Bolt Pattern | Spreadbore
• Front Maximum Height: 4.13 Inch
• Fuel Injectors Included: No
• Fuel Rail(s) Included: No
• Fuel System Type: Carb
• Gasket Or Seal Included: No
• Grade Type: Performance
• Intake Port Gasket(s) Included: No
• Manifold Type: Low Rise
• Material: Aluminum
• Nitrous Bung(s) Included: No
• Plenum Finish: Natural
• Rear Maximum Height: 5.25 Inch
• Removable Runners: No
• Removable Top/Lid: No
• Single Or Dual Plane Type: Single Plane
• Throttle Body Bore Diameter: 3.6
• Throttle Body Gasket Included: No
• Throttle Body Included: No
• Vacuum Ports: No
• Warranty: Manufacturer's Limited 90 Day Warranty
