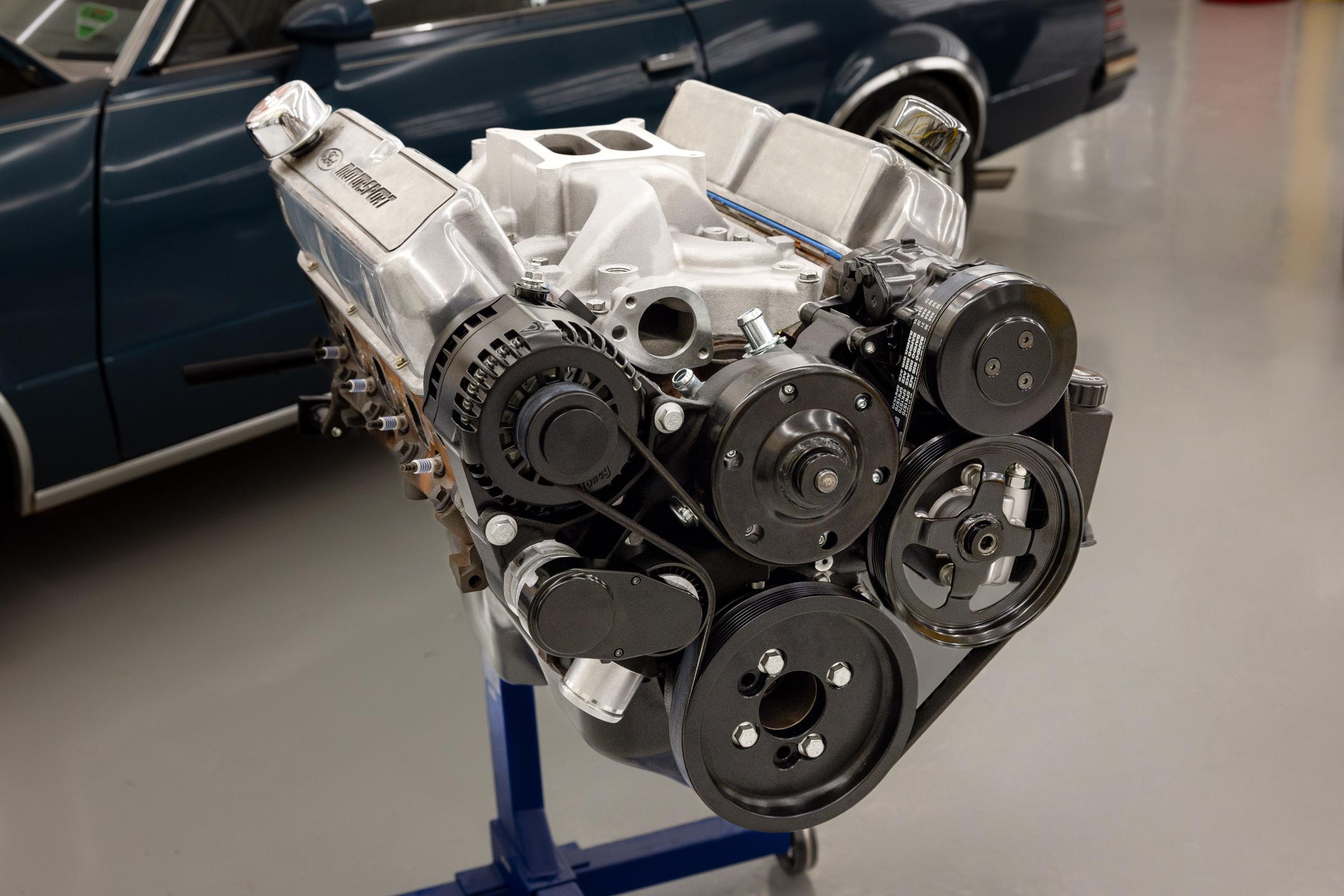

Small Block Ford Mid Mount Complete Accessory System Small Block Ford Mid Mount Complete Accessory Drive Black Finish Holley

Holley's Mid-Mount accessory drives are available for small block Ford engines! The Mid-Mount complete accessory system has all accessories pulled in tighter than other accessory drives.

At the heart of the system is a bracketless mounting, the accessories mount directly to a uniquely designed timing cover for a clean, integrated form. This product offers superb engine visibility to show off your engine, not unsightly accessory brackets.

The Holley designed alternator is also innovative. This premium alternator utilizes 6-phase technology as found on the C7 Corvette.

The water pump cartridge also shares its design efficiencies with that of the C7 Corvette. The compact and reliable SD7 A/C compressor and Type Ii P/S pump with baffled reservoir are also integrated.

The design provides two heater hose return port locations (upper top & passenger-side low). When we say complete, we mean complete.

The Mid-mount system comes with everything you need. All accessories are included; the water pump, A/C compressor, Alternator, and P/S pump with reservoir.

All pulleys and the belt are supplied. Heater hose adapters, power steering to -6 An hardline, and the alternator plug/harness are included.

Easy assembly was a priority during the entire development of this accessory solution. Color graphical instructions walk you through every step of the installation.

Features and Benefits:

• The Mid-Mount complete accessory system has all accessories pulled in tighter than other accessory drives
• Bracketless accessory mounting integrated with supplied front timing cover assembly Water pump inlet pipe mounts for either drivers-side or passenger-side lower radiator hose routing, timing cover also has mounting for driver or pass-side ignition timing pointers Two return heater hose ports (upper center & pass-side low) with hose adapter/port plug included Crankshaft belt pulley configured for 3 or 4-bolt crank dampers, spacer p/n's 97-446, 97-447, or 97-448 are available for purchase to adjust for different Oe crank damper pulley flange depths Driver & pass-side A/C hose connections are available for purchase to account for A/C routing on different vehicles, p/n's 97-443 (driver-side) & 97-444 (pass-side) Power steering may be deleted with a drive belt change, see installation instructions for the commonly available drive belt required A mechanical fuel pump may be used with this kit
• See installation instructions for required timing cover mod to be performed and the power steering pump will need relocation, use kit 97-436, a remote mounted P/S reservoir also required C7 LT1 style premium alternator, 150 amp C7 LT1 style water pump design Compact SD7 A/C compressor Type Ii power steering pump with baffled reservoir P/S adapter hardline to An -6 adapter included Oe pulley ratios for optimal accessory performance Available in natural and black finishes Billet alternator, tensioner, and compressor pulley covers

Details:

• A/C Compressor Bracket Color: Black
• A/C Compressor Bracket Included: Yes
• A/C Compressor Bracket Material: Aluminum
• A/C Compressor Included: Yes
• A/C Compressor Pulley Color: Black
• A/C Compressor Pulley Grooves: 6.0
• A/C Compressor Pulley Included: Yes
• A/C Compressor Pulley Material: Steel
• A/C Compressor Type: SD7
• Accessory Drive Style: Mid-Mount
• Alternator Amperage: 150 Ampere
• Alternator Bracket Color: Black
• Alternator Bracket Material: Aluminum
• Alternator Brackets Included: Yes
• Alternator Color: Black
• Alternator Fan Included: Built-In
• Alternator Included: Yes
• Alternator Material: Cast Aluminum
• Alternator Pulley Color: Black
• Alternator Pulley Grooves: 6.0
• Alternator Pulley Included: Yes
• Alternator Pulley Material: Steel
• Alternator Style: LT1
• Application: Small Block Ford
• Belt Color: Black
• Belt Groove Quantity: 6.0
• Belt Included: Yes
• Belt Type: Serpentine
• Crankshaft Pulley Bolt Hole Quantity: 3 | 4
• Crankshaft Pulley Color: Black
• Crankshaft Pulley Grooves: 6.0
• Crankshaft Pulley Included: Yes
• Crankshaft Pulley Material: Steel
• Damper Included: No
• Damper Style: Factory
• Engine: Ford Small Block
• Finish: Black
• Grade Type: Performance
• Hardware Included: Yes
• Housing Material: Aluminum
• Inlet Inside Diameter: 44.62mm/17.6 Inch
• Inlet Outside Diameter: 51.45mm/2.025 Inch
• Material: Aluminum
• Output: 150 Amps
• Power Steering Hardline Included: Yes
• Power Steering Pulley Included: Yes
• Power Steering Pump Bracket Color: Black
• Power Steering Pump Bracket Material: Aluminum
• Power Steering Pump Brackets Included: Yes
• Power Steering Pump Color: Black
• Power Steering Pump Included: Yes
• Power Steering Pump Pulley Attachment: Press-On
• Power Steering Pump Pulley Color: Black
• Power Steering Pump Pulley Grooves: 6.0
• Power Steering Pump Pulley Material: Steel
• Power Steering Pump Reservoir Color: Black
• Power Steering Pump Reservoir Material: Plastic
• Power Steering Pump Reservoir Style: Attached
• Power Steering Pump Style: Gm Type 2
• Power Steering Reservoir Included: Yes
• Pulley Material: Composite and Steel
• Tensioner Color: Black
• Tensioner Cover Color: Black
• Tensioner Cover Included: Yes
• Tensioner Cover Material: Aluminum
• Tensioner Included: Yes
• Tensioner Type: Spring Loaded
• Thermostat Included: No
• Universal Or Specific Fit: Specific
• Warranty: Manufacturer's Limited 90 Day Warranty
• Water Neck Included: No
• Water Pump Color: Black
• Water Pump Included: Yes
• Water Pump Material: Aluminum
• Water Pump Pulley Color: Black
• Water Pump Pulley Grooves: 6.0
• Water Pump Pulley Included: Yes
• Water Pump Pulley Material: Steel
• Water Pump Rotation: Counterclockwise (Left)
• Water Pump Style: Gm Cartridge
