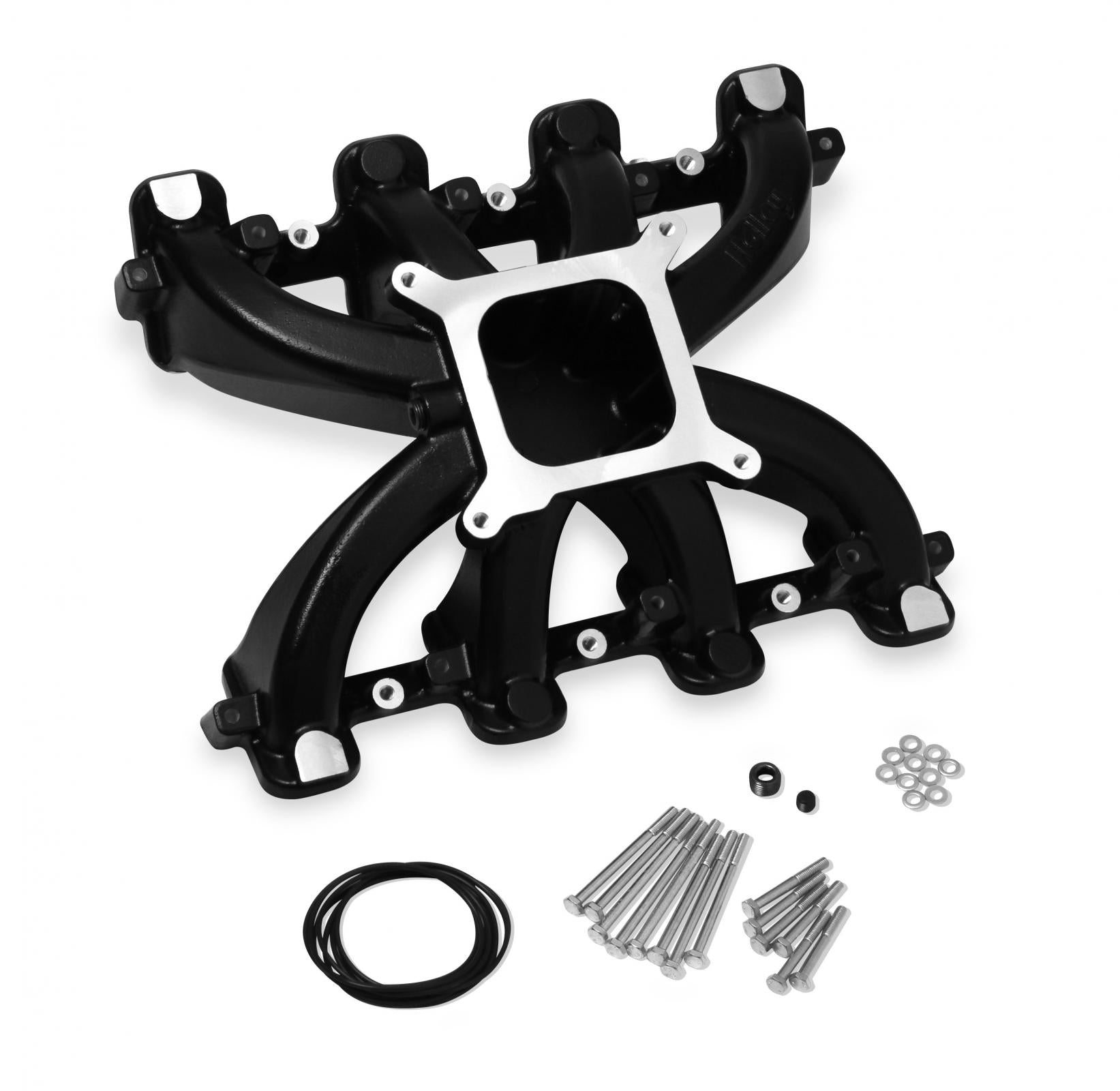

Single Plane Carbureted Intake GM LS3/L92 Black Ceramic Coated Carbureted Single Plane Intake Manifold Fits All GM LS Gen III or IV Engines Equipped with LS3/L92 Style Rectangular Port Cylinder Heads Holley

Carbureted Single plane intake manifold. Fits all Gm Ls Gen Iii or Iv engines equipped with LS3/L92 style rectangular port cylinder heads

Features and Benefits:

• Weight - 11.5 lbs
• Minimum carb flange height - fit in vehicles with minimum hood modifications Height (front) - 5.417 inch to the lifter valley cover flange at the engine block front flange 2500-7000 RPM power band Optimized runner layout and constant cross sectional area - broad torque curve, best vehicle performance from 2500-7000 RPM 4150 Square bore flange (accepts up to 1.75 inch diameter throttle bores) Port size - 2.50 inch height x 1.15 inch wide Efficient casting design - lightweight, consistent wall thicknesses, improved casting quality Includes Viton O-ring intake to cylinder head gaskets - Viton is a registered trademark of DuPont Performance Elastomers Cast aluminum construction - great manifold for centrifugal blower, turbocharged or Nos power adder applications

Associated Comments:

• Includes mounting bolts & washers. Also includes O-ring cylinder head mounting flange gaskets for an OEM style seal.

Details:

• Basic Operating RPM Range: 2500-7000 RPM
• Cnc Ported: No
• Carburetor Flange: Square/4150
• Carburetor Quantity: 1.0
• Carburetor Studs Included: No
• Color: Black
• Construction: Cast
• Cylinder Head Port Shape: Cathedral
• Deck Height: 9.24 Inch
• Egr Port: No
• Engine: Gm LS3/L92
• Flange Style: 4150 Square Bore
• Front Maximum Height: 5.417 Inch
• Fuel Injectors Included: No
• Fuel Rail(s) Included: No
• Fuel System Type: Carb
• Gasket Or Seal Included: No
• Grade Type: Performance
• Intake Port Gasket(s) Included: No
• Manifold Type: Single Plane
• Material: Aluminum
• Nitrous Bung(s) Included: No
• Plenum Finish: Black
• Rear Maximum Height: 5.417 Inch
• Removable Runners: No
• Removable Top/Lid: No
• Single Or Dual Plane Type: Single Plane
• Throttle Body Bore Diameter: 3.6
• Throttle Body Gasket Included: No
• Throttle Body Included: No
• Vacuum Ports: Yes
• Warranty: Manufacturer's Limited 90 Day Warranty
