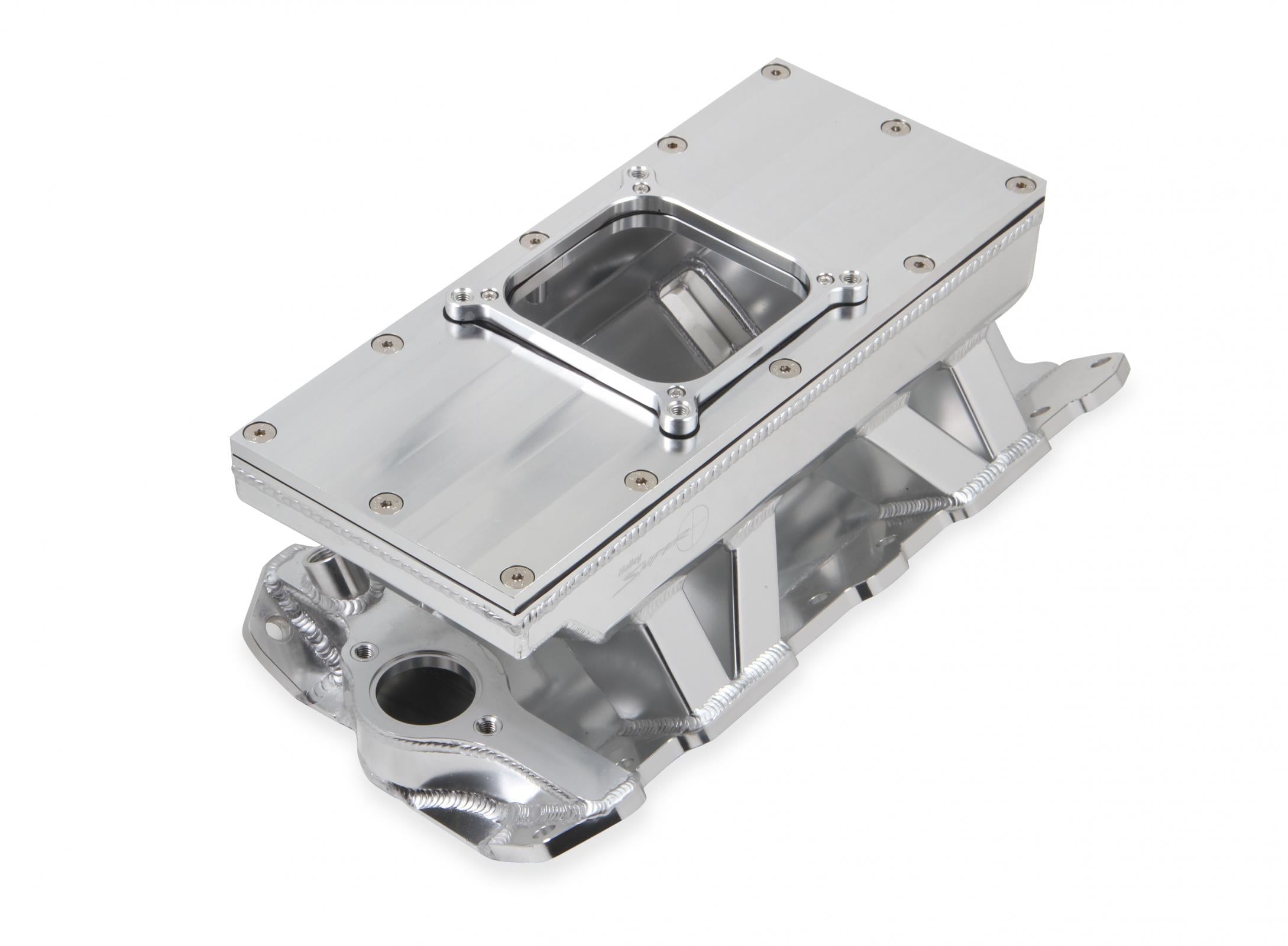

Sheet Metal Fabricated Intake Manifold Small Block Chevy Fabricated Intake Manifold Sbc Single Plane Carbureted (4500 Style Flange Changeable Plate) Silver With Logo Sniper EFI

Each manifold is ready to bolt-on out of the box (including a high-flow fuel rail kit for EFI versions). These manifolds are precision fixtured and welded for a perfect fit and maximum structural integrity.

• Holley Sniper continues to push the aftermarket by introducing fabricated carbureted and EFI intake manifolds for GM Small Block and LS along with Ford 4.6 Modular 3-valve and 5.0L Coyote engines, These performance sheet metal intakes are great looking and an excellent value compared to other fabricated intake manifolds.
• 100 percent TIG welded.
• Runner lengths with tapered top on EFI intakes designed to increase velocity and more evenly distribute airflow to all 8 cylinders.
• Available in Silver and Black Finishes.
• 3mm (1/8 inch) thick T6061 Sheet Aluminum construction, strong and durable even under high horsepower and boosted conditions.
• EFI Intakes include 3/8 inch Fuel rail kits with -8A fittings and crossover braided line capable of supporting 750+ horsepower (w/ laser engraved Sniper EFI logo).
• Expanded Designs to accommodate (1 x 4150) & (2 x 4150) carbureted applications for GM LS7, Ford 4.6L 3-valve Mod-Motor, and Ford 5.0L Coyote platforms.
• New Modular Removable Top Plates options for Small Block Chevy now available (1 x 4150, 2 x 4150, and 1 x 4500 flange options).

Details:

• Basic Operating RPM Range: 1800-7000 RPM
• Carburetor Flange: Dominator/4500
• Carburetor Quantity: 1
• Carburetor Studs Included: No
• CNC Ported: No
• Color: Polished
• Construction: Fabricated
• Cylinder Head Port Shape: Rectangle
• Deck Height: 9.025 Inch
• EGR Port: No
• Emission Code: 4
• Engine: Chevrolet Small Block Gen I
• Flange Size: 4500
• Flange Style: 4150 Square Bore
• Front Maximum Height: 8.503 Inch
• Fuel Injectors Included: No
• Fuel Rail(s) Included: No
• Gasket Or Seal Included: No
• Grade Type: Performance
• Intake Port Gasket(s) Included: No
• Material: Aluminum
• Nitrous Bung(s) Included: No
• Plenum Finish: Polished
• Port Size: 1.90 inch x 1.15 inch
• Rear Maximum Height: 8.503 Inch
• Removable Runners: No
• Removable Top/Lid: Yes
• Single Or Dual Plane Type: Single Plane
• Style: Carbureted
• Throttle Body Bore Diameter: 3.6 Millimeter
• Throttle Body Gasket Included: No
• Throttle Body Included: No
• Vacuum Ports: None
• Warranty: Manufacturer's Limited 90 Day Warranty
