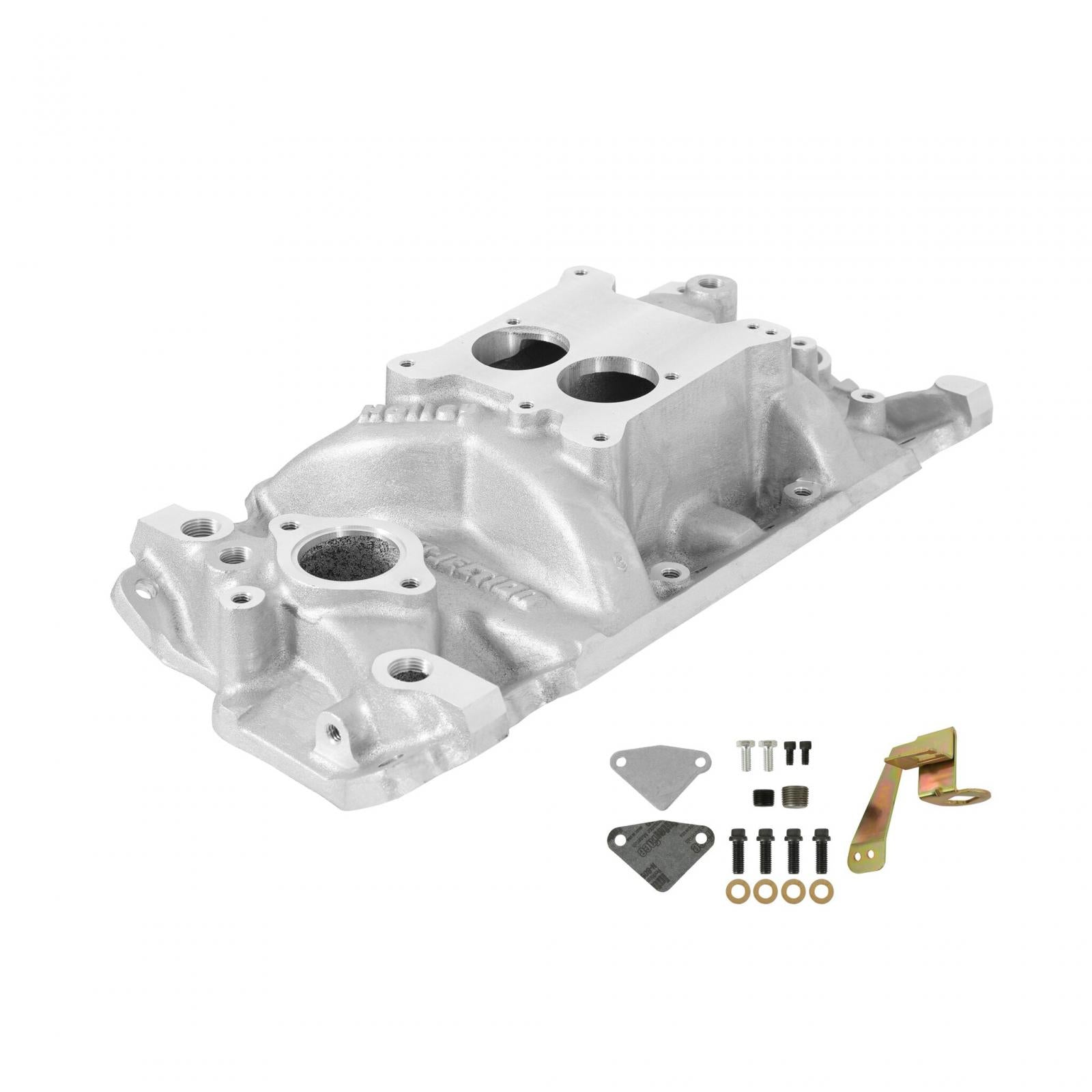

Pro-Jection Intake Chevy Small Block V8 Pro-Jection TBI Intake Manifold High Rise Dual Plane W/egr 1962-1986 262ci-400ci, 1987-later with Aluminum Heads Holley

Pro-Jection Tbi Intake Manifold High Rise Dual Plane w/Egr 1962-1986 262ci-400ci, 1987-later with Aluminum Heads

Features and Benefits:

• Egr Provisions Height: Front 3.91 inch, Rear 5.40 inchPort Size: 1.89 inch height 1.15 inch width High Rise Dual Plane Design Holley Pro-Jection Tbi Mounting Flange Power band: Idle-6000 RPM

Associated Comments:

• Utilizes late model alternator and A/C bracket mounting provisions. Has vacuum taps off manifold runners.
• Extra installation hardware included. Not intended as O.E.
• replacement for 1987 & later fuel injected trucks.

Details:

• Basic Operating RPM Range: Idle-6000 RPM
• Cnc Ported: No
• Carburetor Flange: Holley Pro-Jection
• Carburetor Quantity: 1.0
• Carburetor Studs Included: No
• Color: Silver
• Construction: Cast
• Cylinder Head Port Shape: Rectangle
• Deck Height: 9.025 Inch
• Egr Port: No
• Engine: Chevrolet Small Block Gen I
• Flange Style: Holley Pro-Jection
• Front Maximum Height: 3.91 Inch
• Fuel Injectors Included: No
• Fuel Rail(s) Included: No
• Fuel System Type: EFI
• Gasket Or Seal Included: No
• Grade Type: Performance
• Intake Port Gasket(s) Included: No
• Manifold Type: Low Rise
• Material: Aluminum
• Nitrous Bung(s) Included: No
• Plenum Finish: Natural
• Rear Maximum Height: 5.4 Inch
• Removable Runners: No
• Removable Top/Lid: No
• Single Or Dual Plane Type: Single Plane
• Throttle Body Bore Diameter: 2
• Throttle Body Gasket Included: No
• Throttle Body Included: No
• Vacuum Ports: No
• Warranty: Manufacturer's Limited 90 Day Warranty
