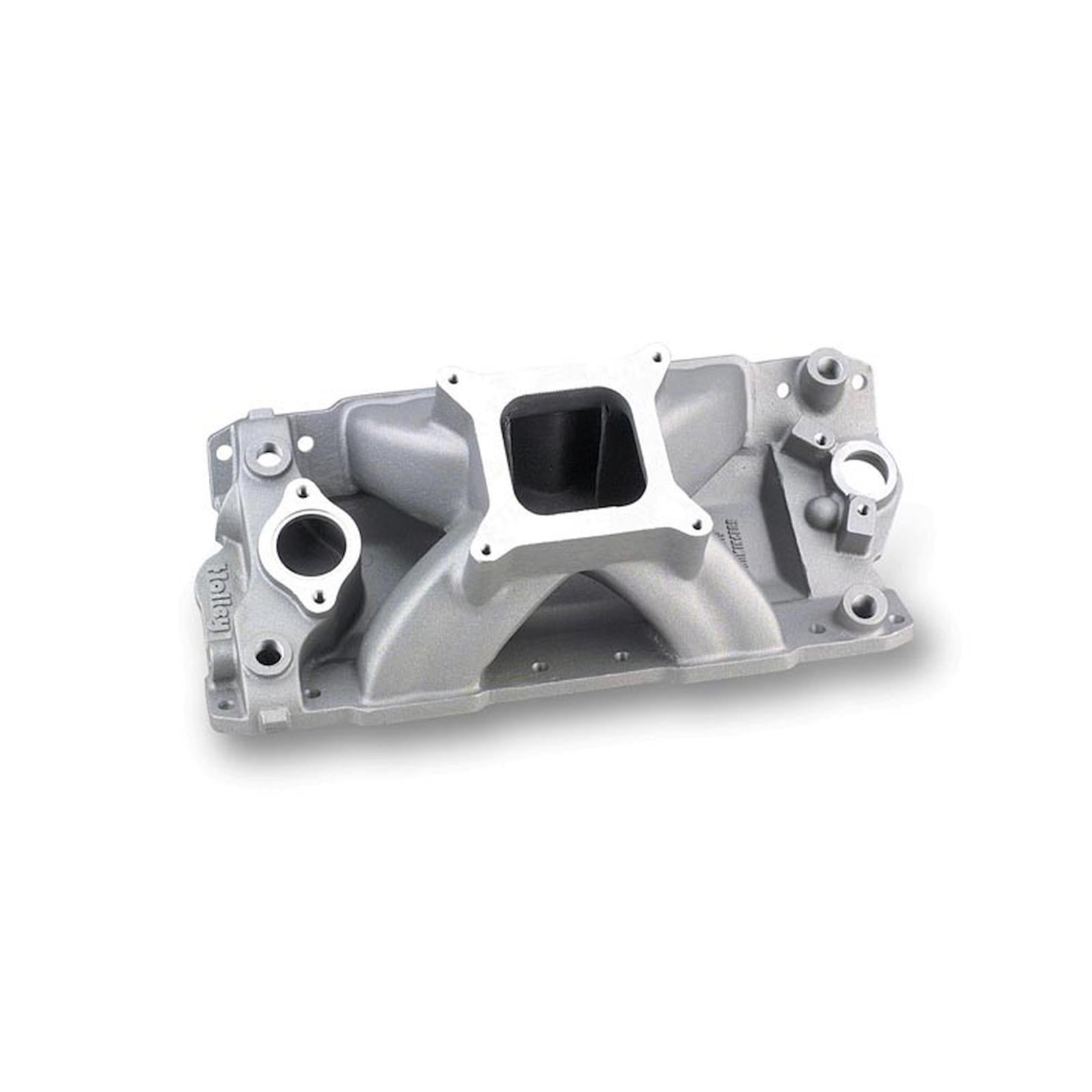

Keith Dorton Series Intake Chevy Small Block V8 Keith Dorton Series Intake Manifold 1957-1986 262ci-400ci, 1987-later with Aluminum Heads Holley

This is a great manifold designed for competition engines built for circle track and drag racing using 23o standard port heads. Ideal for classes that require cast iron heads that require an unported intake manifold.

Features and Benefits:

• Isolated Water cross-over Square Bore Carburetor Mounting Flange Power band: 4500-8500 RPM Single Plane with Isolated Plenum Port Size: 2.00 inch height 1.20 inch width Height: Front 6.13 inch, Rear 6.13 inch

Details:

• Basic Operating RPM Range: 4500-8500 RPM
• Cnc Ported: No
• Carburetor Flange: Square/4150
• Carburetor Quantity: 1.0
• Carburetor Studs Included: No
• Color: Natural
• Construction: Cast
• Cylinder Head Port Shape: Rectangle
• Deck Height: 9.025 Inch
• Egr Port: No
• Engine: Chevrolet Small Block Gen I
• Flange Style: 4150 Square Bore
• Front Maximum Height: 6.13 Inch
• Fuel Injectors Included: No
• Fuel Rail(s) Included: No
• Fuel System Type: Carb
• Gasket Or Seal Included: No
• Grade Type: Performance
• Intake Port Gasket(s) Included: No
• Manifold Type: High Rise
• Material: Aluminum
• Nitrous Bung(s) Included: No
• Plenum Finish: Natural
• Rear Maximum Height: 6.13 Inch
• Removable Runners: No
• Removable Top/Lid: No
• Single Or Dual Plane Type: Single Plane
• Throttle Body Bore Diameter: 3.6
• Throttle Body Gasket Included: No
• Throttle Body Included: No
• Vacuum Ports: No
• Warranty: Manufacturer's Limited 90 Day Warranty
