Dual In-Tank Retrofit Fuel Module W/Return 340 LPH Dual 340 LPH Drop-In Retrofit EFI Fuel System-E85 Compatible Supports Up To 1400 EFI Or 1800 Carb Hp (Hp Rating At 60 Psi At 13.5 Volts / 24 Amp Draw) Sniper EFI

Dual In-Tank Retrofit Fuel Module W/Return 340 LPH Dual 340 LPH Drop-In Retrofit EFI Fuel System-E85 Compatible Supports Up To 1400 EFI Or 1800 Carb Hp (Hp Rating At 60 Psi At 13.5 Volts / 24 Amp Draw) Sniper EFI

Vendor: Holley Sniper EFI
SKU: 19-355-FRCQ
Availability: Many In Stock
Product type: Fuel Pump Module Assembly
$649.95
$7.50
$649.95

Product Instructions:

This product does not have any instructions.
Dual In-Tank Retrofit Fuel Module W/Return 340 LPH Dual 340 LPH Drop-In Retrofit EFI Fuel System-E85 Compatible Supports Up To 1400 EFI Or 1800 Carb Hp (Hp Rating At 60 Psi At 13.5 Volts / 24 Amp Draw) Sniper EFI

Dual In-Tank Retrofit Fuel Module W/Return 340 LPH Dual 340 LPH Drop-In Retrofit EFI Fuel System-E85 Compatible Supports Up To 1400 EFI Or 1800 Carb Hp (Hp Rating At 60 Psi At 13.5 Volts / 24 Amp Draw) Sniper EFI

$7.50 $649.95
Dual In-Tank Retrofit Fuel Module W/Return 340 LPH Dual 340 LPH Drop-In Retrofit EFI Fuel System-E85 Compatible Supports Up To 1400 EFI Or 1800 Carb Hp (Hp Rating At 60 Psi At 13.5 Volts / 24 Amp Draw) Sniper EFI

Dual In-Tank Retrofit Fuel Module W/Return 340 LPH Dual 340 LPH Drop-In Retrofit EFI Fuel System-E85 Compatible Supports Up To 1400 EFI Or 1800 Carb Hp (Hp Rating At 60 Psi At 13.5 Volts / 24 Amp Draw) Sniper EFI

$7.50 $649.95
Description
Description
x

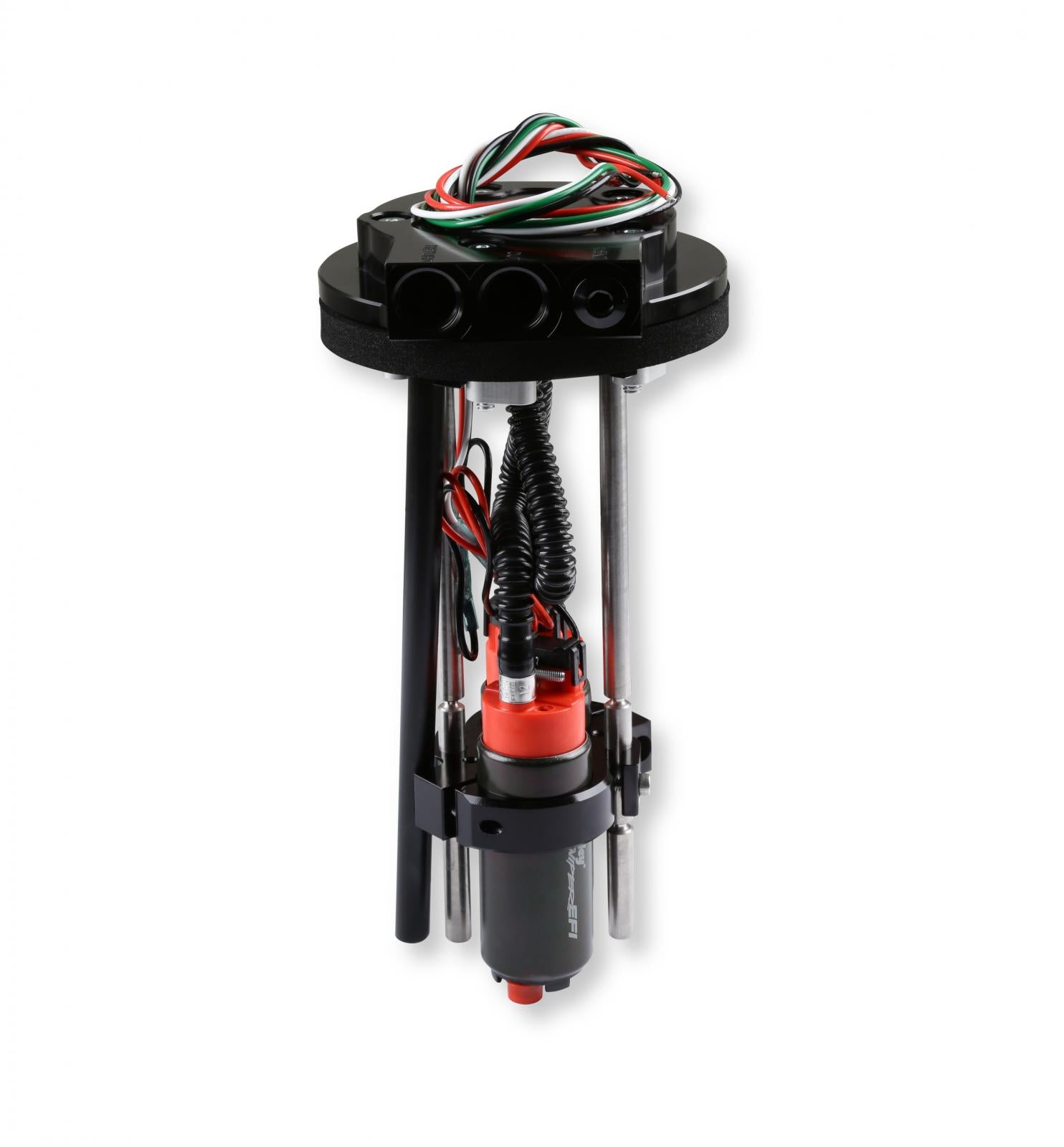

Looking to make a serious step up in the horsepower department? The Sniper Dual 340 LPH EFI Pump Module would be an excellent choice. While the name includes EFI, these modules can be used as an upgrade for carbureted systems as well with the proper regulator.

  • The innovative clamping system allows you to locate the module nearly anywhere in the tank while retaining your factory fuel level sending unit, The clamping system allows you to rotate the unit 360 degrees for easier clocking of the plumbing and wiring locations under your ride.
  • 19-355 - Twin 450 LPH - 34A at 60 PSI, 30A at 10 PSI.
  • EFI.
  • ? (Gas, 13.5V, 60 PSI) - 1400 HP.
  • ? (E85, 13.5V, 60 PSI) - 950 HP.
  • Carburetor.
  • ? (Gas, 13.5V, 10 PSI) - 1800HP.
  • ? (E85, 13.5V, 10 PSI) - 1250 HP.
  • Billet, anodized, laser etched flanges with 8AN ORB Return/Outlet and 6AN ORB vent.
  • The innovative clamping system allows you to locate the module nearly anywhere in the tank while retaining your factory fuel level sending unit.
  • The clamping system allows you to rotate the unit 360 degrees for easier clocking of the plumbing and wiring locations under your ride.
  • Easy install - just drill a 4 inch hole in the top of the tank then use hand tools.
  • E85 compatible.
  • The dual pump design allows the pumps to be ran together or the second pump can be triggered additionally when you need it (Hobbs switch, Holley EFI auxiliary pump circuit, etc, , , ).
  • Units install in tanks from 7 inch - 12 inch deep.
  • Filter socks included, Hydramats can be purchased separately.
  • Easily wire with an MSD High Current Solid State Relay (75643, 75643-HC, 7564, 7564-HC) or dual relay kit (12-759).

Details:

  • Application: Universal
  • Emission Code: 3
  • Free Flow LPH: 680
  • Fuel Sending Unit Included: No
  • Fuel Tank Pressure Sensor Included: No
  • Fuel Type: E85, Gasoline
  • Gasket Or Seal Included: Yes
  • Material: Billet
  • Minimum Fuel Tank Depth: 7 inches
  • Strainer Included: Yes
  • Warranty: Manufacturer's Limited 90 Day Warranty
