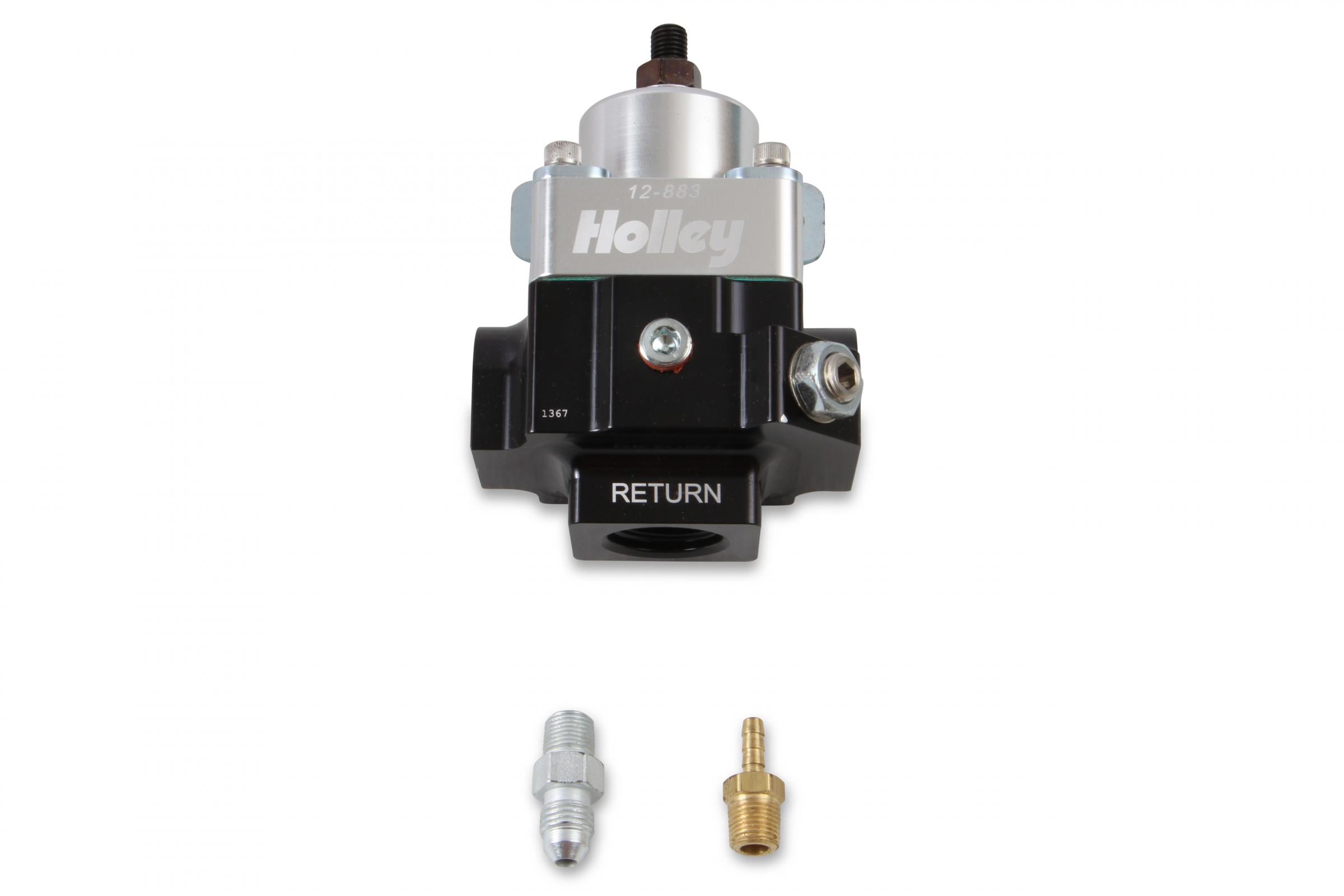

Double Adjustable Fuel Regulator 2 Port Double Adjustable Regulator 10AN Adjustable from 4-9 PSI Holley

Holley's new double adjustable fuel pressure regulators are designed for belt or cable driven pumps where fuel flow changes with engine rpm. These regulators are compatible with E85 and alcohol applications.

Made from billet aluminum, these regulators are offered in both 2-Port and 4-Port models to complete your fuel system requirements. The idle adjustment design is strategically placed so that none of the ports are blocked like other designs.

These regulators retain the true 2 and 4 port flow. Alcohol and E85 compatible.

2 Port models available with 8AN and 10AN port size

Features and Benefits:

• Individual adjustment settings, one for idle and wide open throttle
• Fuel pressure adjustability at idle can help prevent flooding at low rpms Wide open throttle settings help to prevent fuel starvation at the top end of the rpm range Alcohol and E85 compatible.

Associated Comments:

• Regulator is compatible with Diesel #1 and Diesel #2.

Details:

• Adjustable: Yes
• Application: Universal
• Color: Black Anodized
• Fuel Type: Diesel | Gasoline
• Fuel System: Carbureted
• Gauge Included: No
• Gauge Port Included: Yes
• Grade Type: Performance
• Inlet Gender: Female
• Inlet Port Diameter: 10 An Orb
• Inlet Port Quantity: 1.0
• Inlet Size: 10 An
• Inlet Type: 10 An Orb
• Material: Aluminum
• Maximum Pressure: 9 Pounds per Square Inch
• Minimum Pressure: 4 Pounds per Square Inch
• Mounting Bracket Included: Yes
• Mounting Type: Inline
• Outlet Gender: Female
• Outlet Port Diameter: 10 An Orb
• Outlet Port Quantity: 2.0
• Outlet Size: 10 An
• Outlet Type: 10 An Orb
• Port Quantity: 2.0
• Pressure Range: 4-9 PSI
• Rebuildable: Yes
• Style: Double Adjustable
• Vacuum Port Quantity: 1.0
• Warranty: Manufacturer's Limited 90 Day Warranty
