Complete Transmission Installation Kit GM Tkx/tko Installation Kit for 1955-1985 Internally Balanced Small or Big Block Chevrolet Engines Holley

These Holley Transmission Installation Kits come complete with everything you need to bolt a Tkx or Tko transmission to a 1955-1985 small or big-block Chevrolet engine. Built with a mixture of our best brands including Lakewood, Hays and Mr.

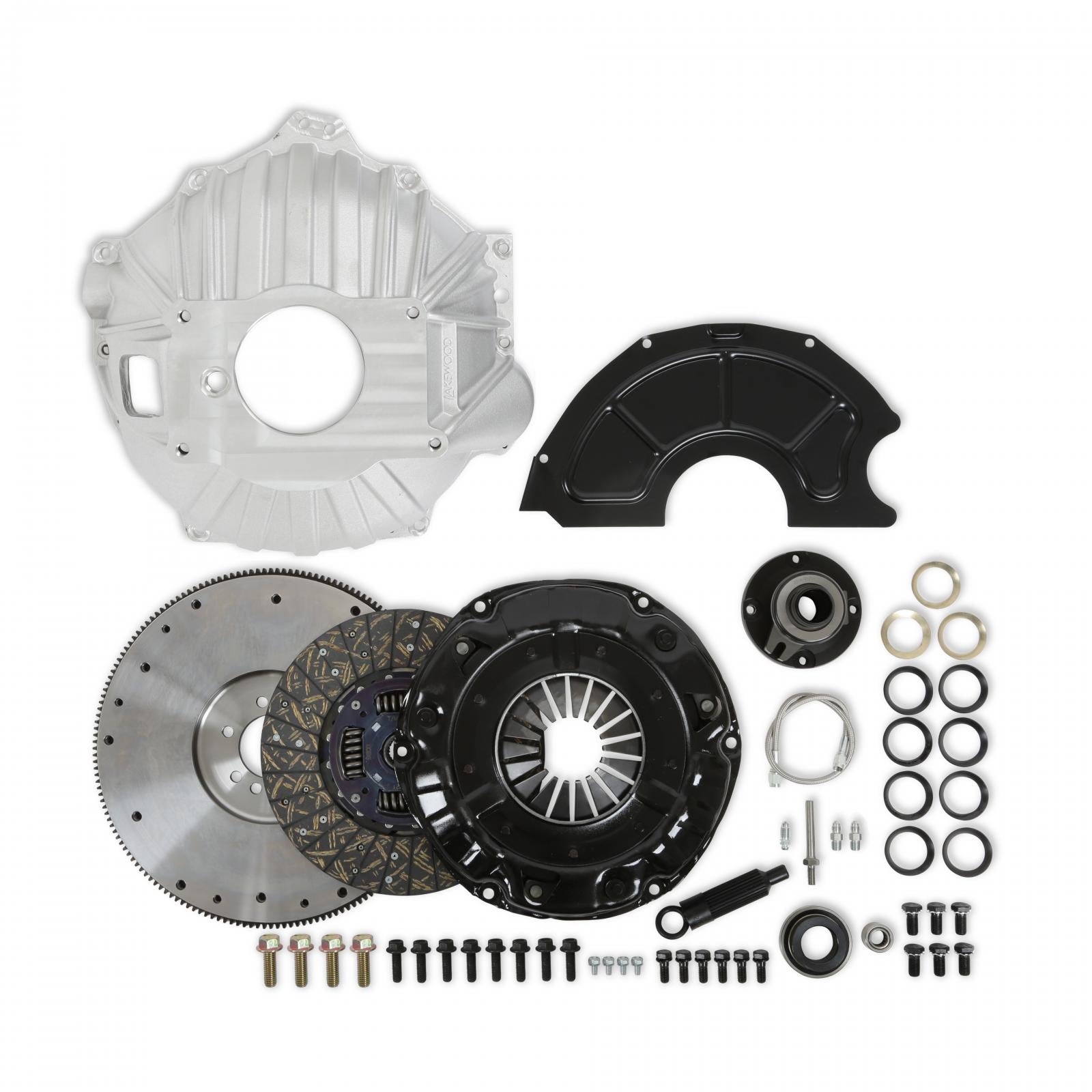

Gasket. Kit includes: A roller pilot bearing, bellhousing with dust shield, billet steel flywheel, clutch and pressure plate, hydraulic release bearing, and all hardware needed to install these components.

Features and Benefits:

• Designed for 1955-1985 Small and Big Block Chevrolet Engines using a Tkx or Tko transmission Light weight cast aluminum bellhousing and stamped steel dust cover provides factory-like installation and appearance Billet steel 36 lb, 168 tooth neutral balanced flywheel for light weight and strength Roller style pilot bearing offers improved shifting by reducing parasitic drag and transmission wear 26 spline, 11-inch clutch disk offers superior clamping force for engines up to 500 hp Adjustable Hydraulic Release Bearing offers reduced pedal effort and easy installation Organic clutch disc features heavy-duty hub spring assembly for increased load capacity Works with Oe (original equipment) or Msd High Torque starters All hardware included

Associated Comments:

• Designed for internally balanced small block Chevy or big block Chevy engines with 2-pc rear main seal and a 2.485-inch crank register diameter.

Details:

• Bellhousing Material: Aluminum
• Disc Diameter: 11.0
• Disc Material: Organic
• Disc Style: Spring Hub
• Engine: Chevrolet Small Block Gen I | Gm Big Block
• Engine Balance: Internal
• Flywheel Balance: Neutral
• Flywheel Material: Billet Steel
• Grade Type: Performance
• Hardware: Steel
• Input Shaft Diameter: 1-1/8 inch.
• Input Spline: 26.0
• Pilot Bearing: Roller
• Pressure Plate Style: Diaphragm
• Release Bearing: Hydraulic
• Transmission: Tko Gm | Tkx Gm
