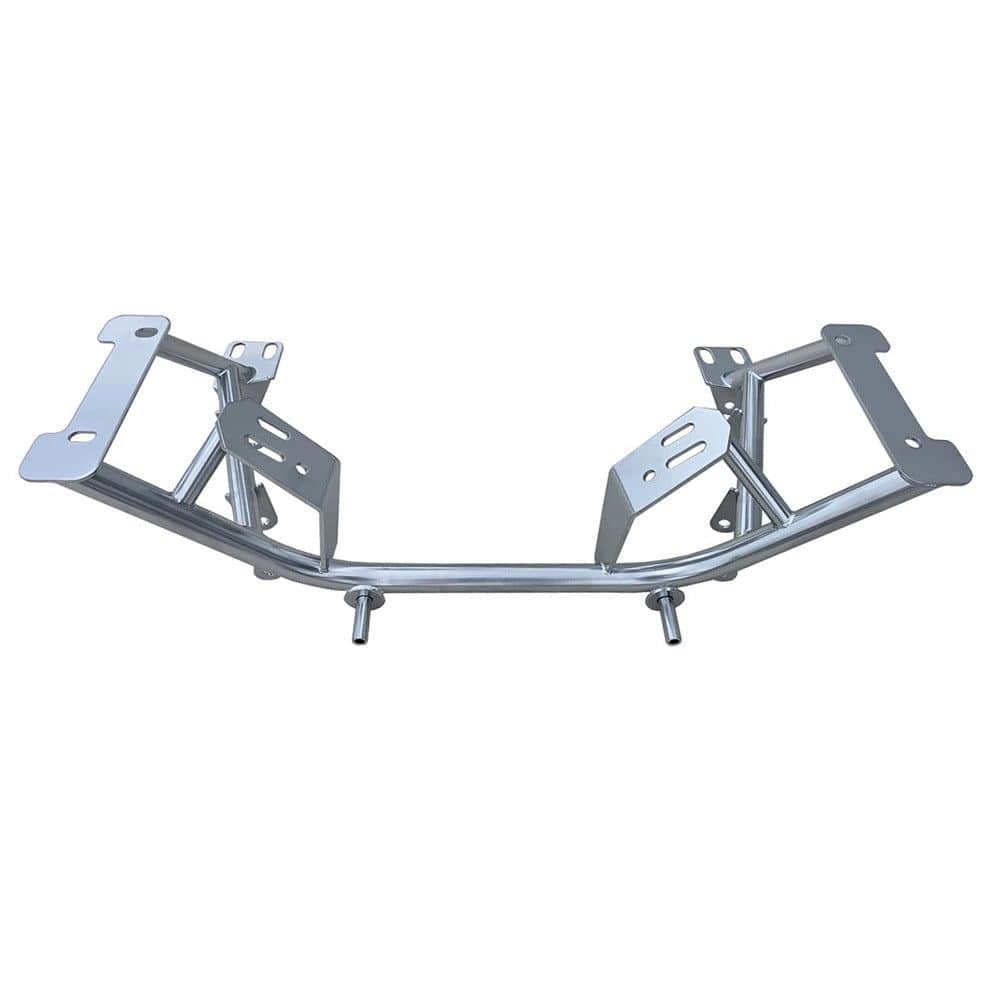

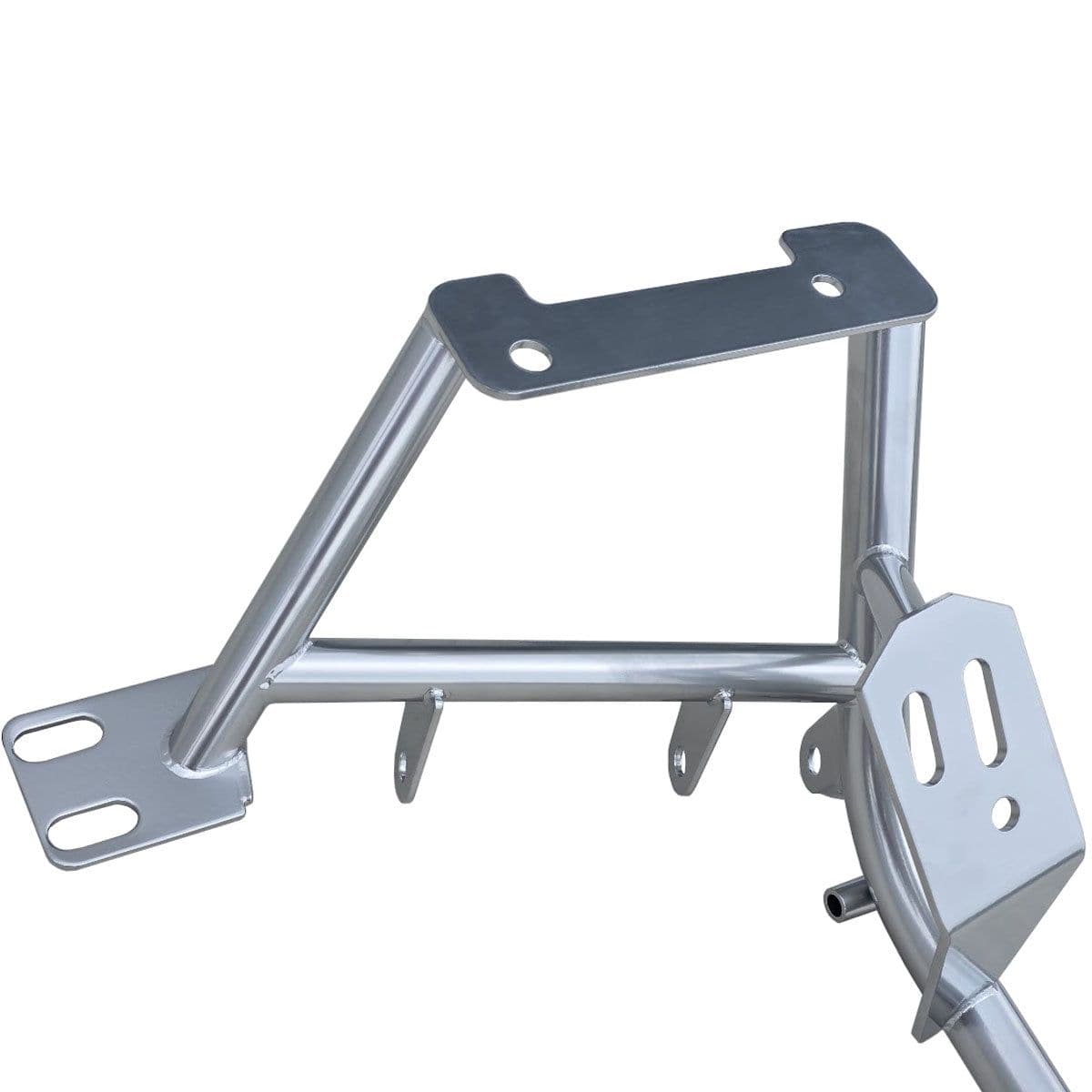

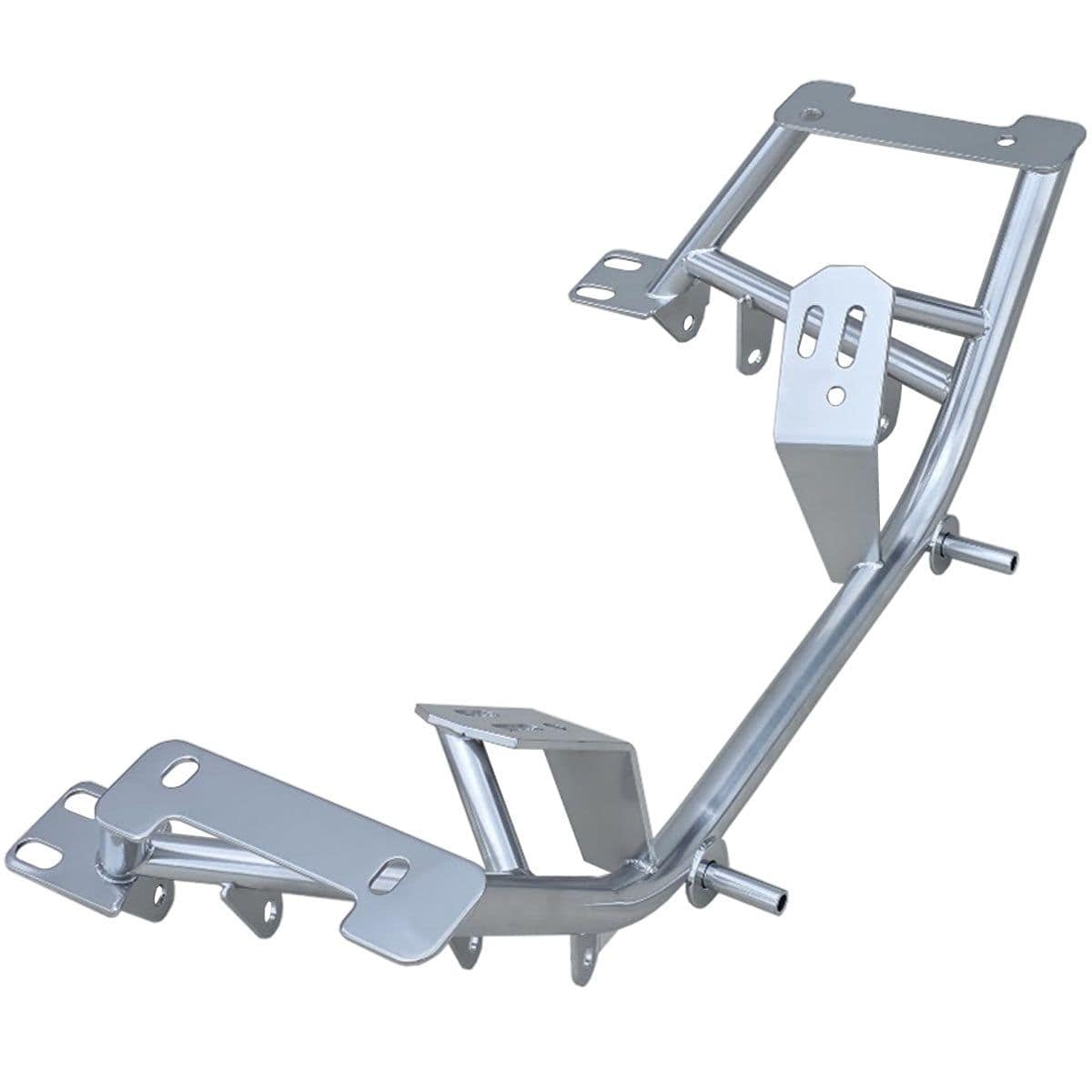

5.0L Coyote Swap Tubular Chrome Moly K-Member (fits 79-04 Mustang) UPR

     Install a Coyote 5.0L or Modular 4.6L or 5.4L into your Fox Body Mustang! UPR's all new Chrome Moly K-member - will save more weight and exceed any strength limitations of mild steel while allowing maximum header and oil pan clearance. Designed for the abuse of hardcore drag race, road race, and Street Enthusiasts. Most importantly it will handle the everyday wear and tear of city & highway streets like that was it's main intent.  This K-member allows for the use of a Ford Modular 4.6L/5.4L into a fox body Mustang and Coyote 5.0L As seen here with the use of 96-04 4.6 urethane or solid motor mounts. All of our Suspension Products are made with the Highest Quality materials and most expensive components. We spare no expense on our products and always stand behind them with our Lifetime warranty that no one else offers.



Optional Parts:

Hardware Kit Standard: Grade 10.9 hardware kit includes (4) A-Arm bolts, (8) A-Arm washers, (4) A-Arm nylock nuts, (4) K-member main bolts, (4) K-member main washers, (4) K-member rear pad bolts, (4) K-member rear pad washers.

Hardware Kit Master: Grade 10.9 hardware kit includes (4) A-Arm bolts, (8) A-Arm washers, (4) A-Arm nylock nuts, (4) K-member main bolts, (4) K-member main washers, (4) K-member OEM style J-nuts, (4) K-member rear pad bolts, (4) K-member rear pad washers (2) K-member rear aluminum retaining nut/blocks.

Motor Mount Shims: 6061 Aluminum Motor Mount shims to space the engine up for additional oil pan clearance, available in 1/4" or 3/8" thick.

» Does NOT Alter Wheelbase
» Silver Powder Coated Finish
» Thicker 1/4" Motor Mount Pads
» Tig Welded in Billet fixtures
» 4130 Seamless Chrome Moly Tubing
» Lighter and Stronger than Mild Steel
» Saves 37lbs over the factory K-member
» All Welding & Materials Made in the USA!
» Now includes Rack Bolts & Offset or Standard Rack Bushings
» Can be used with UPR Non-Adjustable, Adjustable A Arms or Factory A Arms by adding 2005-SP2 Spring perches.

* DOES NOT WORK WITH ANY OTHER BRAND AFTERMARKET TUBULAR A ARMS

1979 1980 1981 1982 1983 1984 1985 1986 1987 1988 1989 1990 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000 2001 2002 2003 2004 LX GT GTS Bullitt Mach 1 Mustang Cobra Roush Saleen & Vehicles.
