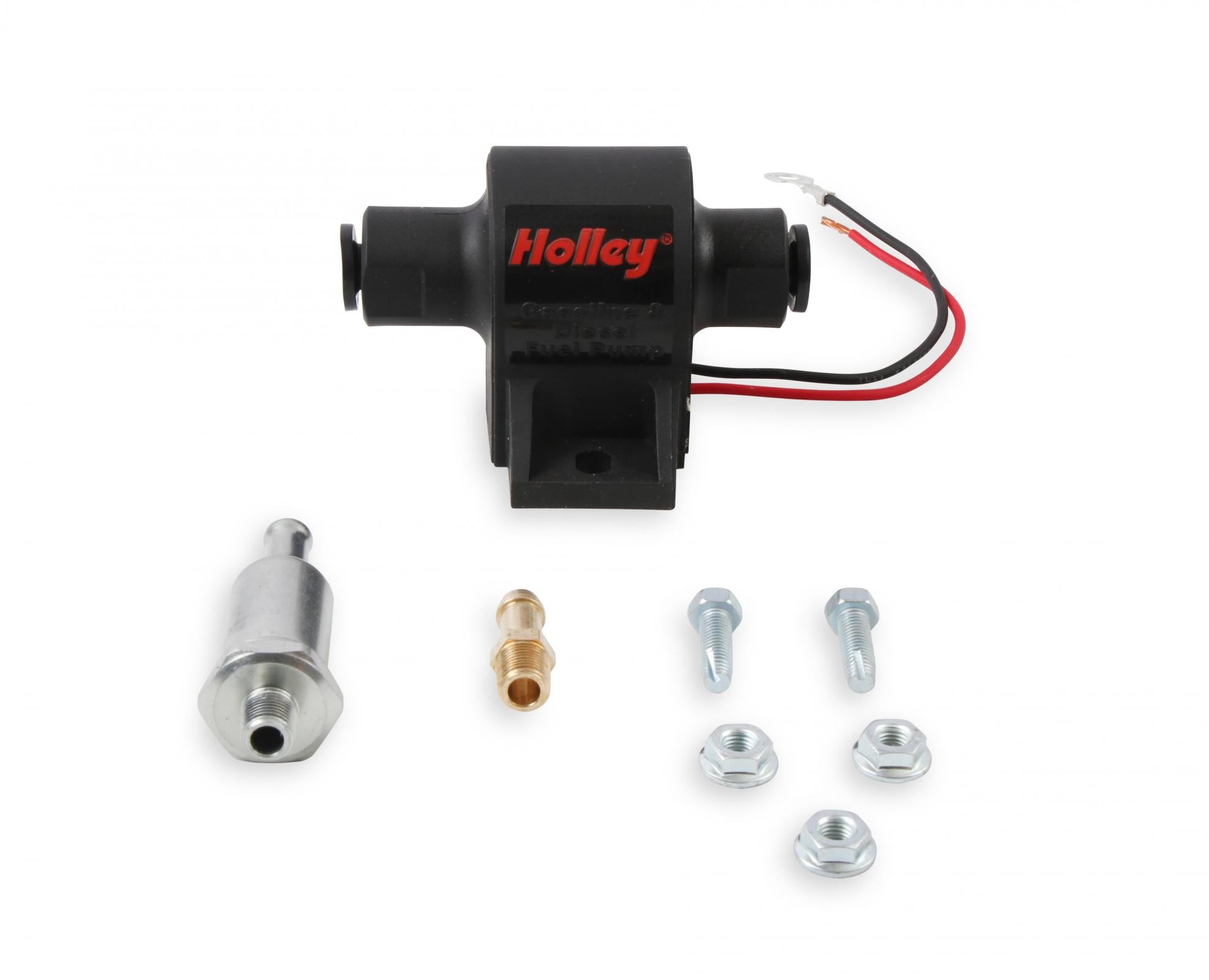

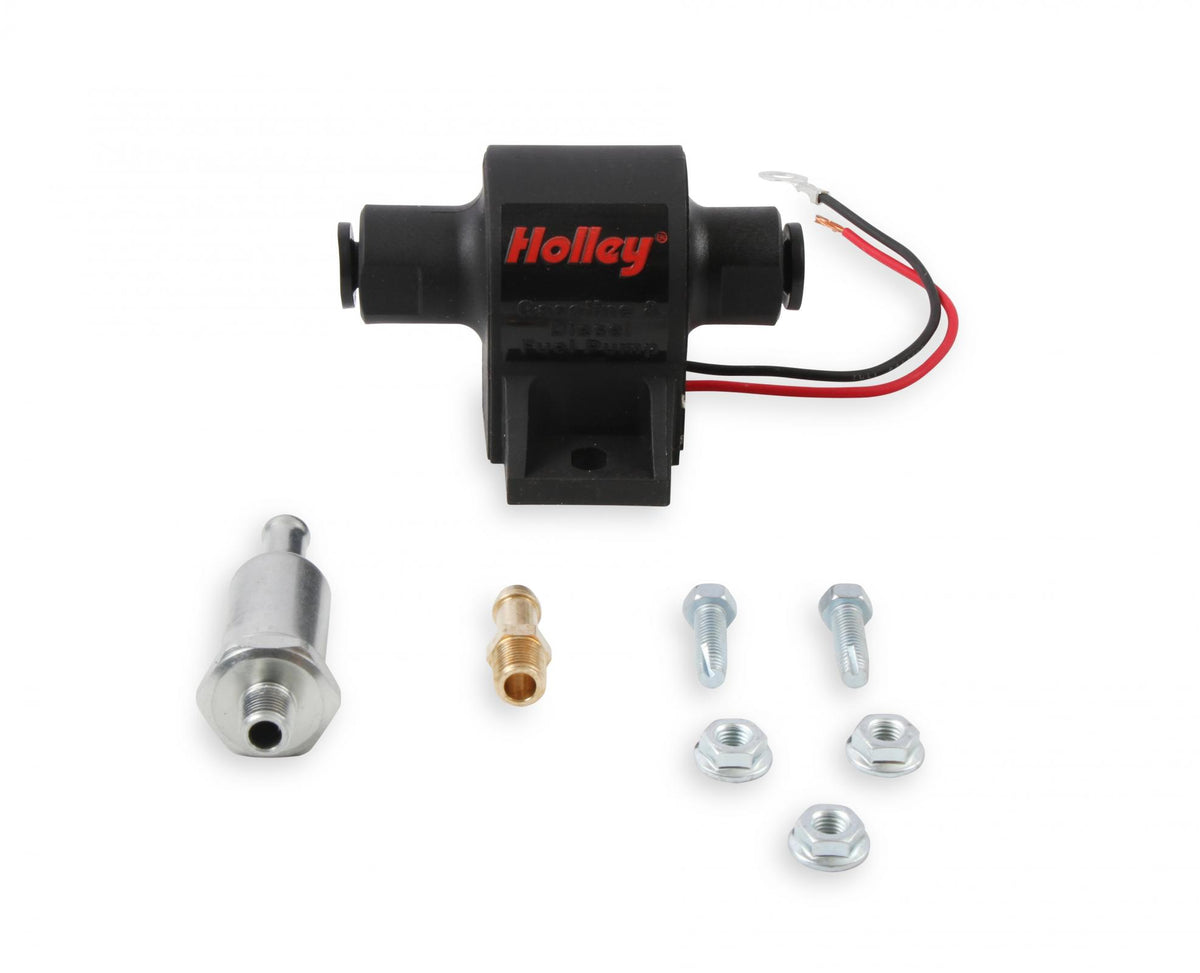

25 GPH Mighty MITE Electric Fuel Pump, 1.5-4 PSI Street Carbureted Applications Compatible with All Fuels and Fuel Additives Holley

Holley pumps have fueled more performance engines than all others and the Holley line keeps on growing! Holley is proud to introduce the all new Holley Mighty MiteTM electric fuel pumps!

They're big on performance, but small in size! They're quiet, easy to install and work with gas, diesel, blended alcohol and E85!

Features and Benefits:

• 12 volt operation 1.5-4 psi operating pressure 25 gal/hr flow Good for up to 300HP naturally aspirated Reliable solid state design provides longer life Not designed for use on aircraft of any type
• Compatible with all fuels and fuel additives (gas, diesel, blended alcohol, e-85) Simple 2 wire hookup Self-priming and regulating 12 inch dry lift capable Quiet operation - 65db Great for carbureted trucks, cars, generators and agricultural equipment - also makes a great transfer pump Engineered and matched performance with Holley, Demon, Quick Fuel and Edelbrock carburetors(all trademarks are property of their respective owners
• Edelbrock is a registered trademark of Edelbrock,Llc) Comes with fuel filter, fittings and mounting hardware Made in the USA Hose Barbs Fit 5/16 inch Fuel Hose

Associated Comments:

• Should be mounted with in 12 inch of the fuel tank. Ideal for use with Earl's Vapor Guard Carburetor Hose!
• Mounting holes are 2 3/8 inch apart. This model does not have a one-way check valve or an anti-siphon valve, so fuel can be pulled in either direction when the pump is turned off.

Details:

• Application: Universal
• Free Flow Gph: 25
• Free Flow Lph: 95
• Fuel Type: Diesel | E85 | Gasoline
• Fuel Delivery Type: Carburetor
• Fuel Sending Unit Included: No
• Fuel System: Carbureted
• Gasket Or Seal Included: No
• Grade Type: Performance
• Hose Size: 16-May
• Inlet Fitting Thread Size: 1/8 Inch
• Inlet Size: 1/8 inch NPT
• Inlet Type: NPT
• Internal Or External: External
• Material: Steel
• Max Pressure: 4 psi
• Maximum Flow Rating: 25 U.S. Gallons per hour
• Maximum Pressure: 4 Pounds per Square Inch
• Motor Finish: Black
• Mounting Hardware Included: Yes
• Negative Ground: Yes
• Outlet Fitting Thread Size: 1/8 Inch
• Outlet Quantity: 1
• Outlet Size: 1/8 inch NPT
• Outlet Type: NPT
• Pump Body Color: Black
• Regulator Included: No
• Strainer Included: No
• Universal Or Specific Fit: Universal
• Voltage: 12 Volts DC
• Warranty: Manufacturer's Limited 90 Day Warranty
• Wire Quantity: 2.0
• Wiring Harness Included: No
