Plug N Play™ Single Valve Oil Catch Can Separator (fits 15-23 Mustang GT) UPR

     This 2015-2021 Ford Mustang GT single valve Plug N Play™ catch can kit with adjustable mounting bracket is the perfect fit for your engine bay. With it's extremely efficient compact design and Incredible Looks. We went the extra mile to ensure you get the best quality components. Utilizing Continental Braided Hose and Billet Hose Ends to give you the Strongest and Best Performing Setup Possible. No cheap stock lines here that have been cut and spliced on! Featuring the New UPR Plug N Play™ Catch Can Fittings. So you can empty it without removing the intake cover or catch can lines from your engine. (UPR Exclusive Push Button Fittings) We have hundreds of hours testing our new Multi Stage Oil Separator to ensure the claims and results will exceed your expectations. We even double the size of the oil containment chamber.

The design of this unit is more along the lines of a True Engineer and cannot be compared or confused with units that have side by inlets and outlets with screen rolled up and shoved in them. The Multi chamber technology in UPR catch cans captures and filters all the oil vapor and trash from getting into your air intake tract. That's the most important reason for a catch can in the first place! Don't forget the UPR CSS - Clean Side Separator for the Driver side of the PCV system to make sure you are fully protected at both ends of the PCV system. (Great protection and ideal for all driving situations) Manufactured from Domestic T-6 6061 Aluminum bar stock and finished off using only the best Diamond cutters to exceed your expectations of what a superior product should fit and look like. UPR is the largest aftermarket catch can manufacturer in the country. Continually improving our designs to stay ahead of the competition and give you the cutting edge technology of tomorrow today. We are so confident we offer an unconditional warranty on our products to let you know you can always count on UPRproducts.



Installs in 15 minutes.

This UPR Pro Series catch can kit is shipped ready to install even if no upgrades are selected. Upgrades are available to allow you to tailor the kit to fit your needs.

Optional Parts:

UPR Billet One-Way Valve Cover Breather:
These are Valve Cover Breathers with a one-way valve inside of it. These are designed to allow excess/positive crankcase pressure to exit through the breather when in boost. Then it closes to return to vacuum while driving to prevent un-metered air from entering to maintain perfect drivability. These are also ideal for vehicles in very cold or freezing weather as it allows crankcase pressure to escape until condensation or frozen condensation in the PCV hoses melts or thaws. This is a must to ensure maximum engine seal life.

UPR Billet Pro Series Check Valves:
These are larger higher flowing check valves than the standard check valve. It will increase the vacuum through the catch can and deliver better crankcase evacuation. The improved crankcase evacuation translates to increased MPG and more responsive low speed drivability. The arrow printed on the check valve will always need to face away from the catch can. There is no down side to having a check valve in a Naturally Aspirated (NA) application, and a check valve in required in boosted applications. The larger, higher flowing Pro Series Check Valve also has a hex nut on the body so you can disassemble it for inspection and cleaning.

UPR Adjustable Billet PCV Fitting:
The adjustable Billet PCV fitting includes 4 different size jets. It eliminates the failure prone factory PCV and still allows for the needed restriction. Jet sizes and application basics for Adjustable version are explained below.
» .100 Jet size is slightly more restrictive than the factory PCV fitting to allow you to restrict the PCV for vehicles ingesting too much oil through the PCV and wanting to reduce oil consumption.
» .125 Jet size is slightly less restrictive than the factory PCV fitting to allow you to adjust the pcv to increase flow a bit more than factory for vehicles that only need minor adjustments to eliminate vapor locking in the PCV system.
» .150 Jet size is even less restrictive for the boosted vehicles that tow and are driven harder to increase flow more than factory for vehicles that only need more adjustment to eliminate vapor locking in the PCV system.
» .175 Jet size is the least restrictive compared to the factory PCV fitting and allows for the largest adjustment of the jets for modified vehicles that generate a lot of blow-by / back pressure to eliminate vapor locking / flooding the clean side of the PCV system with oil.

SS Magnetic Drain Plug:
The Stainless Steel magnetic drain plug would replace the drain plug on the bottom of the catch can with an allen head plug that has a magnet embedded into it. It will attract any ferrous metal material to it so the user can inspect it. If you select this option you can not also use the Drain Line kit below.

Drain Line Kit:
The drain line kit includes a drain valve, hose and fittings needed to install the drain valve. It allows the user to relocate the drain somewhere easier to access like the wheel well opening or bumper area. If you select this option you can not also use the Magnetic Drain Plug.

**Choose either the stainless steel magnetic drain plug or the UPR drain line kit, you would not need both**

Replacement O-Rings:
Spare O-rings for the catch can cup. If the O-ring is lost, torn or if it's just time to replace it due to wear it's a good idea to have a couple of spares in the glove box. 5030 is the main dirty side catch can and 5043 is the clean side separator.

» 8oz Capacity
» Show Quality Finish
» Can measures 2.5" x 6"
» Prevents Oil from Entering Intake
» Exclusive Multi Stage Design Traps Oil
» Innovative Diffuser Tube and Chamber
» High Quality CNC Machined Billet Aluminum
» Plug N Play™ fittings at Catch Can connections
» 5/8" Oil Resistant Continental Braided Hose included
» Innovative Adjustable Mounting Bracket (360° Rotation)
» Improves Fuel Economy, Throttle Response & Performance
» Black Anodized Finish
» Optional Driver Clean Side Separator Available - Select Option Above

» Billet Check Valve
» OEM 5/8" Factory Connectors
» 5/8" Continental Braided Hoses
» Billet Hose Ends with Clamps
» Billet Adjustable Mounting Bracket
» Plug N Play™ quick release connectors & billet fittings

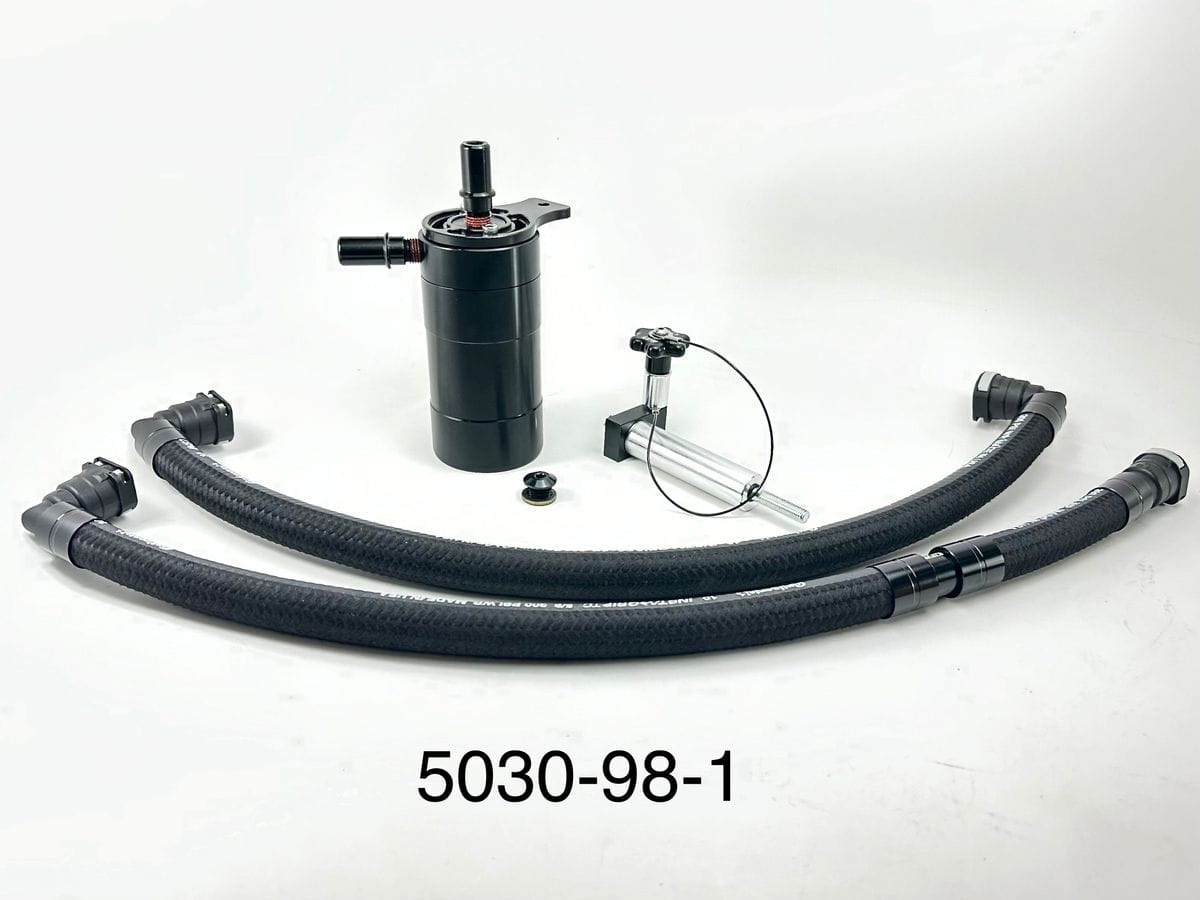

» Single Valve Billet Catch Can (Exclusive 4 Stage Design)

2015* 2016* 2017* 2018* 2019* 2020* 2021 2022 2023 Ford Mustang GT 5.0 Coyote S550



*Fits Right Hand Drive models as well
